The New UTD2000CL series is an economical desktop digital storage oscilloscope that meets the key requirements of basic measurement. The simple and clear front panel design is more convenient for users to operate. UTD2000CL series is equipped with 70MHZ/150MHz bandwidth, real-time sampling rate is 500MS/s, 2 models are provided with dual channels, standard storage depth is 64kpts.

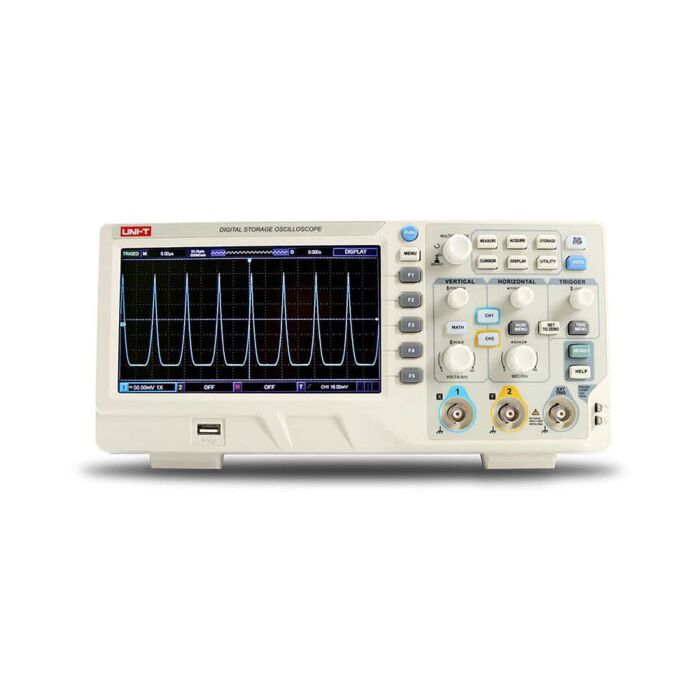

The UNI-T UTD2152CL Digital Storage Oscilloscope stands out in the realm of electrical measurement. Offering a robust 150MHz bandwidth and dual analog channels, this oscilloscope is designed to meet the intricate needs of electrical engineering professionals and educators. Its 500MSa/s real-time sample rate coupled with a maximum memory depth of 64kpts makes it a reliable choice for detailed waveform analysis.
- 150MHz analog bandwidth and two analog channel inputs
- Maximum real-time sample rate of 500MSa/s
- Maximum memory depth of 64kpts
- Maximum waveform capture rate of 5000wfms/s
- Vertical Scale @1MΩ: 1V/div to 20V/div
- Math Function for Complex Calculations
- Equipped with a variety of trigger options: Edge, Pulse Width, Video, Slope, and Alternating Trigger
- Zoom Function for In-Depth Analysis: Examine waveforms at various levels of detail
- XY Mode (Lissajous graphics mode) offers quick and accurate measurement of phase differences between signals
- AUTO button - automatically adjusts the vertical scale, horizontal time base, and trigger mode based on input signals
- Excels in FFT spectral analysis, converting time-domain signals into their frequency-domain elements
- Automatic measurement of 34 waveform parameters
- Interface: USB Host/Device, Pass Test Output (BNC)
- Certifications: cETLus, CE, ROHS, UKCA
Applications
- Educational and Training
- Repair / Service Work
- Basic Waveform and Timing Analysis
- General Purpose Bench Scope
Each Unit Includes
- 1 - 150MHz, 2-Channel, 500MSa/s Digital Storage Oscilloscope (UTD2152CL)
- 2 - Oscilloscope Probes (UT-P05)
- 1 - Power Cord
- 1 - USB2.0 Printing Cable
