UTD2000CL+ Series aims to provide schools function with digital storage oscilloscopes that are very close to those used in industries, so as to narrow the equipment gap between teaching and industries, so that graduates can easily start immediately after employment. Besides, the specifications are upgraded on the basis of the original UTD2000CL series to give back to the majority of UNI-T loyal users. UTD2000CL+ Series has a new AUTOSET function. You can customize the scope of one button auto function under the AUTOSET menu. After customization,it is more suitable for teaching and beginners to learn the operation of oscilloscope, so that you can understand the setting and use of oscilloscope in more detail.
UTD2000CL+ Series oscilloscope has a wider display range 8div x I6div, Display more periodic waveforms and better display details. Give you more specific waveform experience. UTD2000CL+ Series has edges pulse widths, slope trigger video triggers alternating trigger and other trigger methods help you capture waveforms quickly and accurately. The alternative trigger method enables you to trigger two asynchronous waveform signals at the same time, allowing you to trigger two signals at the same time and analyze the details.

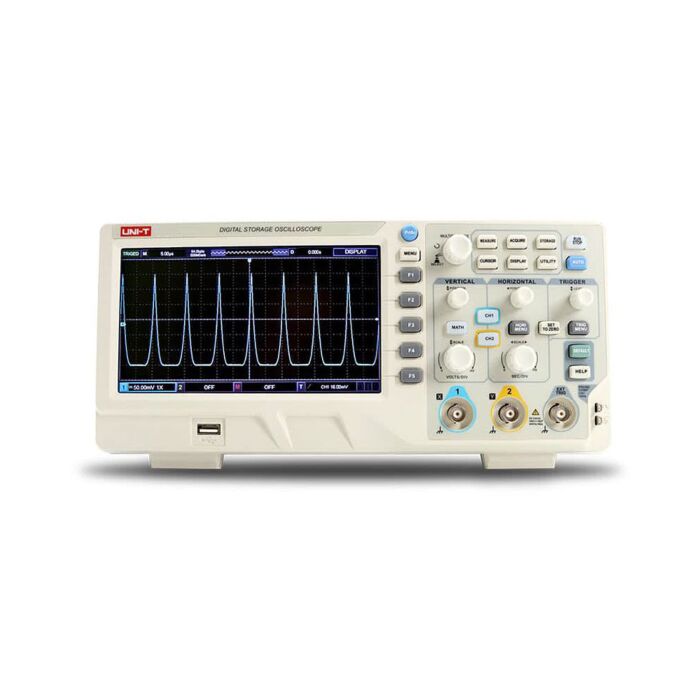

The UNI-T UTD2102CL+ Digital Storage Oscilloscope stands out in the realm of electrical measurement. Offering a robust 100MHz bandwidth and dual analog channels, this oscilloscope is designed to meet the intricate needs of electrical engineering professionals and educators. Its 500MSa/s real-time sample rate coupled with a maximum memory depth of 64kpts makes it a reliable choice for detailed waveform analysis.
- 100MHz analog bandwidth and two analog channel inputs
- Maximum real-time sample rate of 500MSa/s
- Maximum memory depth of 64kpts
- Maximum waveform capture rate of 5000wfms/s
- Vertical Scale @1MΩ: 1V/div to 20V/div
- Math Function for Complex Calculations
- Equipped with a variety of trigger options: Edge, Pulse Width, Video, Slope, and Alternating Trigger
- Zoom Function for In-Depth Analysis: Examine waveforms at various levels of detail
- XY Mode (Lissajous graphics mode) offers quick and accurate measurement of phase differences between signals
- AUTO button - automatically adjusts the vertical scale, horizontal time base, and trigger mode based on input signals
- Excels in FFT spectral analysis, converting time-domain signals into their frequency-domain elements
- Automatic measurement of 34 waveform parameters
- Interface: USB Device, Pass Test Output (BNC)
- Certifications: cETLus, CE, ROHS, UKCA
Applications
- Educational and training
- General electronics and embedded systems
- Maintenance and Troubleshooting
- Research and development (R&D)
Each Unit Includes
- 1 - 100MHz, 2-Channel, 500MSa/s Digital Storage Oscilloscope (UTD2102CL+)
- 2 - Oscilloscope Probes (UT-P04)
- 1 - Power Cord
- 1 - USB2.0 Printing Cable
