The New UTD2000CL series is an economical desktop digital storage oscilloscope that meets the key requirements of basic measurement. The simple and clear front panel design is more convenient for users to operate. UTD2000CL series is equipped with 70MHZ/150MHz bandwidth, real-time sampling rate is 500MS/s, 2 models are provided with dual channels, standard storage depth is 64kpts.

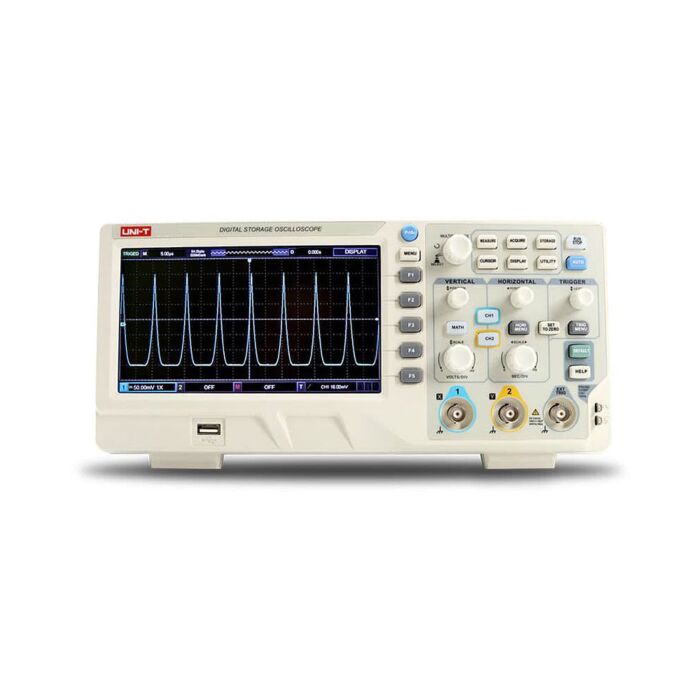

The UNI-T UTD2072CL digital storage oscilloscope is designed for the discerning electrical professional. Featuring a 70MHz bandwidth and two analog channels, this DSO is a powerhouse for detailed electrical analysis. It offers a 500MSa/s real-time sample rate and a substantial 64kpts memory depth, combined with a waveform capture rate of 5,000wfms/s, ensuring both speed and precision in waveform visualization.
The Math Function in the UNI-T UTD2072CL Digital Storage Oscilloscope (DSO) goes beyond basic operations, allowing for intricate waveform analysis crucial for high-level electrical engineering work and academic research. The ZOOM function on its expansive 7-inch screen offers dual display capabilities, providing a comprehensive view of both the overall and specific sections of waveforms, crucial for intricate signal analysis.
With its XY mode, the UNI-T UTD2072CL Digital Storage Oscilloscope (DSO) excels in phase comparison between signals, making it an invaluable tool in laboratories and classrooms. The AUTO Mode feature simplifies operation, automatically configuring the optimal settings for waveform displays. The FFT Spectral Analysis function extends its use to frequency domain analysis, essential for signal integrity checks and harmonic analysis.
The UNI-T UTD2072CL Digital Storage Oscilloscope (DSO) also comes equipped with 34 automatic parameter measurements and a range of trigger options, including Video and Slope Trigger, adapting to a variety of electrical testing needs. Its user-friendly interface and robust functionality make it an ideal choice for professionals and educators seeking precision and versatility in their work.
- 70MHz analog bandwidth and two analog channel inputs
- Maximum real-time sample rate of 500MSa/s
- Maximum memory depth of 64kpts
- Maximum waveform capture rate of 5000wfms/s
- Vertical Scale @1MΩ: 1V/div to 20V/div
- Math Function for Complex Calculations
- Equipped with a variety of trigger options: Edge, Pulse Width, Video, Slope, and Alternating Trigger
- Zoom Function for In-Depth Analysis: Examine waveforms at various levels of detail
- XY Mode (Lissajous graphics mode) offers quick and accurate measurement of phase differences between signals
- AUTO button - automatically adjusts the vertical scale, horizontal time base, and trigger mode based on input signals
- Excels in FFT spectral analysis, converting time-domain signals into their frequency-domain elements
- Automatic measurement of 34 waveform parameters
- Interface: USB Host/Device, Pass Test Output (BNC)
- Certifications: cETLus, CE, ROHS, UKCA
Applications
- Educational and Training
- Repair / Service Work
- Basic Waveform and Timing Analysis
- General Purpose Bench Scope
Each Unit Includes
- 1 - 70MHz, 2-Channel, 500MSa/s Digital Storage Oscilloscope (UTD2072CL)
- 2 - Oscilloscope Probes (UT-P04)
- 1 - Power Cord
- 1 - USB2.0 Printing Cable
