UTD2000CL+ Series aims to provide schools function with digital storage oscilloscopes that are very close to those used in industries, so as to narrow the equipment gap between teaching and industries, so that graduates can easily start immediately after employment. Besides, the specifications are upgraded on the basis of the original UTD2000CL series to give back to the majority of UNI-T loyal users. UTD2000CL+ Series has a new AUTOSET function. You can customize the scope of one button auto function under the AUTOSET menu. After customization,it is more suitable for teaching and beginners to learn the operation of oscilloscope, so that you can understand the setting and use of oscilloscope in more detail.
UTD2000CL+ Series oscilloscope has a wider display range 8div x I6div, Display more periodic waveforms and better display details. Give you more specific waveform experience. UTD2000CL+ Series has edges pulse widths, slope trigger video triggers alternating trigger and other trigger methods help you capture waveforms quickly and accurately. The alternative trigger method enables you to trigger two asynchronous waveform signals at the same time, allowing you to trigger two signals at the same time and analyze the details.

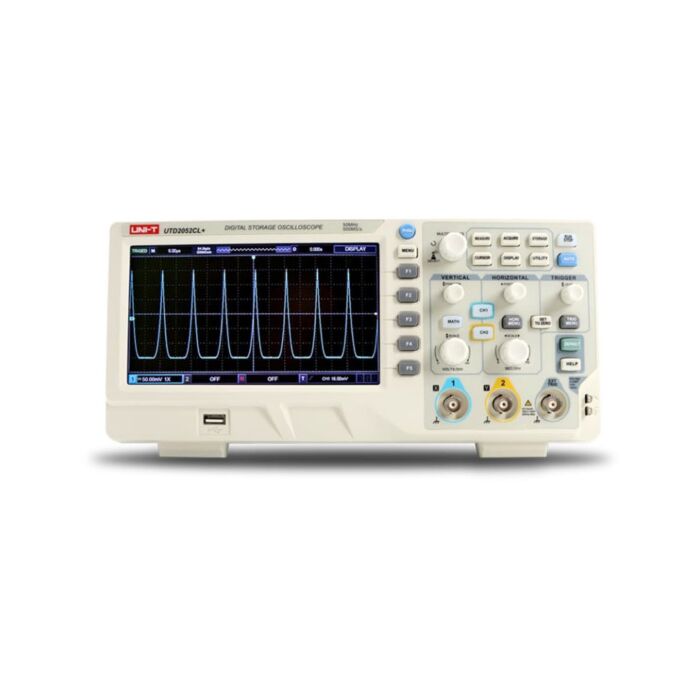

Explore the UNI-T UTD2052CL+, a robust digital storage oscilloscope with a 50MHz bandwidth and dual analog channels, tailored for intricate electrical analysis. This DSO distinguishes itself with a real-time sample rate of 500MSa/s and a memory depth of 64kpts, coupled with a high waveform capture rate of 5,000wfms/s, ensuring detailed and fast waveform representation. The UNI-T UTD2052CL+ Digital Storage Oscilloscope (DSO) Math Function supports comprehensive waveform operations, crucial for in-depth electrical studies and teaching. The dual display ZOOM function on its 7-inch screen allows for simultaneous observation of the overall waveform and specific details, enhancing analysis accuracy.
The XY mode is particularly useful for comparing the phase differences between signals, an essential feature in laboratory settings. The UNI-T UTD2052CL+ Digital Storage Oscilloscope (DSO) AUTO Mode streamlines the setup process, auto-adjusting to the optimal display settings based on the input signals. FFT Spectral Analysis takes the UNI-T UTD2052CL+ Digital Storage Oscilloscope (DSO) capabilities further, perfect for studying harmonic content, noise characteristics in DC power supplies, and analyzing vibrations. The scope also offers 34 automatic parameter measurements and a suite of triggers including Video and Slope Trigger, making it adaptable for a wide range of electrical testing scenarios.
- 50MHz analog bandwidth and two analog channel inputs
- Maximum real-time sample rate of 500MSa/s
- Maximum memory depth of 64kpts
- Maximum waveform capture rate of 5,000wfms/s
- Vertical Scale @1MΩ: 1V/div to 20V/div
- Math Function for Complex Calculations
- Zoom Function for In-Depth Analysis: Examine waveforms at various levels of detail
- XY Mode (Lissajous graphics mode) offers quick and accurate measurement of phase differences between signals
- AUTO button - automatically adjusts the vertical scale, horizontal time base, and trigger mode based on input signals
- Excels in FFT spectral analysis, converting time-domain signals into their frequency-domain elements
- Automatic measurement of 34 waveform parameters
- Interface: USB Device, Pass Test Output (BNC)
- Certifications: cETLus, CE, ROHS, UKCA
Applications
- Educational and training
- General electronics and embedded systems
- Maintenance and Troubleshooting
- Research and development (R&D)
Each Unit Includes
- 1 - 50MHz, 2-Channel, 500MSa/s Digital Storage Oscilloscope (UTD2052CL+)
- 2 - Oscilloscope Probes (UT-P03)
- 1 - Power Cord
- 1 - USB2.0 Printing Cable
