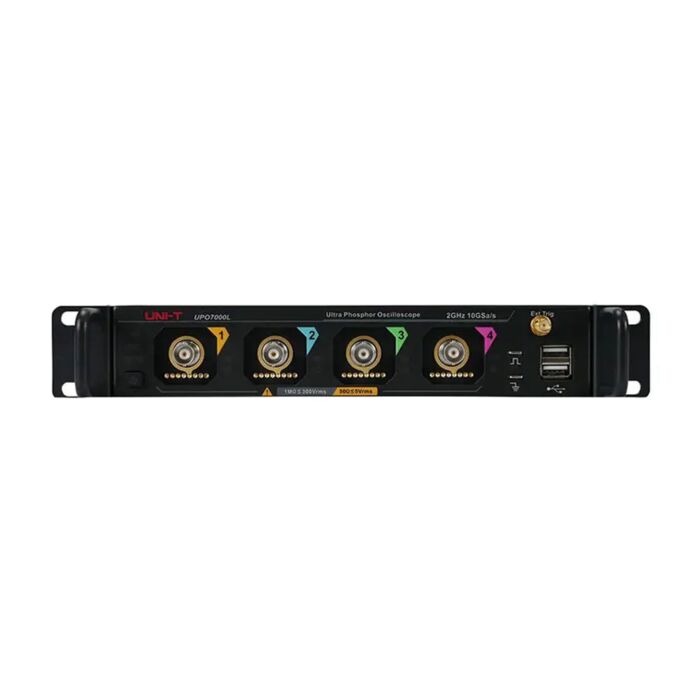

UPO7000L series digital phosphor oscilloscopes feature a compact, rack-mounted structural design with a slim and lightweight body. 1U height is designed for multi-machine system integration, high-density rack setups, and remote system operations, making it ideal for various application scenarios. The system supports multi-unit synchronous triggering and can be expanded to accommodate up to 128 oscilloscopes. Each unit integrates 4 analog channels, 1 external trigger channel, and 1 function/arbitrary waveform generator channel. With a flat body design and machine feet pads, the oscilloscopes are easy to stack and organize. leveraging the 7000 series platform, it ensures a smooth transition for users familiar with 7000X operation. Additionally, an external touch display can be connected, enabling a responsive touch experience similar to that of the 7000X series.
The UNI-T UPO7204L delivers cutting-edge signal fidelity in a space-saving 1U rack form. With 2GHz analog bandwidth, 10GSa/s real-time sampling, and up to 1Gpts memory depth, it's built for high-speed serial validation, aerospace test, and system-level integration. Its advanced UltraAcq technology provides up to 2 million wfms/s capture rate — ideal for catching elusive events in dense, fast signals.
Fully controllable over Ethernet or browser, the UPO7204L supports waveform math, 11 protocol types, optional jitter and power analysis, and MATLAB scripting. Whether in R&D, ATE, or remote test labs, this instrument brings full benchtop capability to a compact rack footprint.
- 2 GHz Analog Bandwidth - High-speed visibility for DDR, PCIe, USB, and RF systems
- 10 GSa/s Sampling Rate - Fast enough to capture <200 ps events and 175 ps edges
- 1 Gpts Max Memory - Deep storage enables full serial session replay and segmented acquisition
- UltraAcq Technology - Up to 2,000,000 wfms/s waveform capture rate
- 11 Protocol Decode Types - Includes ARINC429, MIL-STD-1553, CAN FD, SENT, I2S, and more
- Advanced Eye and Jitter Tools - Includes TIE, bathtub curves, spectrograms, and template mask testing (optional)
- Optional Power Suite - Ripple, SOA, harmonics, and switching loss (UPO7000L-PWR)
- Embedded MATLAB - Process and display waveform calculations directly
- 60 MHz Function Generator - Full-range waveform and modulation output (optional)
- Embedded WebServer and SCPI - Remote browser control and automation ready
Applications
- Automated Test & Production Line Integration
- High Speed Digital / Embedded Systems Debug
- Power Electronics / Switching / Converter Testing
- Education / Research Labs
Each Unit Includes
- 1 - 2 GHz 4-Channel, 10 GSa/s Rack-Mounted High-Speed Oscilloscope (UPO7204L)
- 4 - Passive Probes (500 MHz)
- 1 - Power Cord
- 1 - USB Cable
- 1 - Rack-Mounting Brackets
- 1 - Calibration Certificate
- 1 - Quick Start Guide
