UPO7000L series digital phosphor oscilloscopes feature a compact, rack-mounted structural design with a slim and lightweight body. 1U height is designed for multi-machine system integration, high-density rack setups, and remote system operations, making it ideal for various application scenarios. The system supports multi-unit synchronous triggering and can be expanded to accommodate up to 128 oscilloscopes. Each unit integrates 4 analog channels, 1 external trigger channel, and 1 function/arbitrary waveform generator channel. With a flat body design and machine feet pads, the oscilloscopes are easy to stack and organize. leveraging the 7000 series platform, it ensures a smooth transition for users familiar with 7000X operation. Additionally, an external touch display can be connected, enabling a responsive touch experience similar to that of the 7000X series.

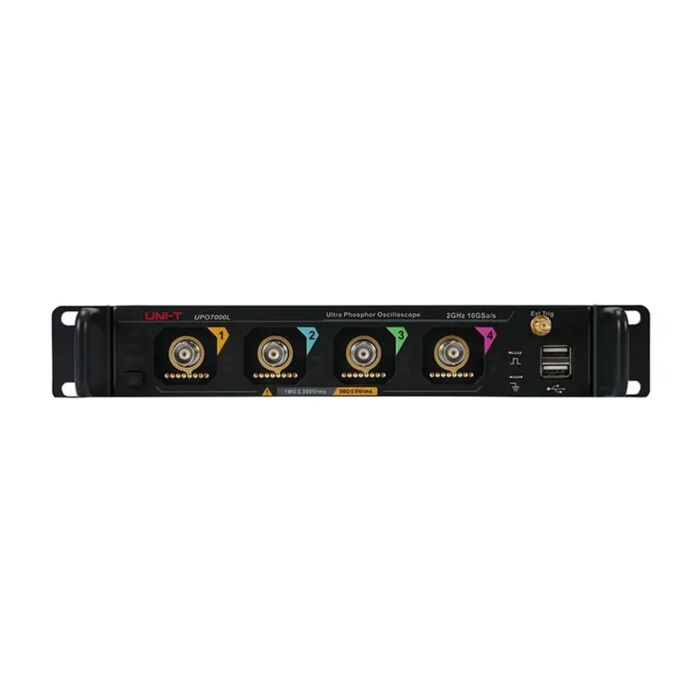

The UNI-T UPO7104L is a powerful 1 GHz digital phosphor oscilloscope housed in a 1U rack-mounted form factor. Designed for dense test setups, automated systems, and high-speed signal capture, it delivers exceptional performance with a 10 GSa/s sampling rate and up to 1 Gpts of memory depth. Whether building a multi-channel ATE rack or need reliable waveform visibility in a remote lab, the UPO7104L delivers uncompromising resolution, speed, and connectivity in a compact, lightweight unit.
Engineered for system integration and continuous acquisition, the UPO7104L offers a full suite of analysis tools — including power analysis, protocol decoding, and optional jitter/eye-diagram functions — all accessible remotely via dual Gigabit Ethernet and embedded WebServer support.
- 1 GHz Bandwidth with 4 Channels - Capture high-speed signals across multiple channels simultaneously
- 10 GSa/s Sampling Rate - Resolve fast signal edges and high-frequency transitions with precision
- Up to 1Gpts Memory Depth - Long-duration captures with segmented acquisition for event-rich streams
- UltraAcq Technology - Up to 2,000,000 wfms/s waveform capture rate in sequence mode
- Protocol Analysis - Standard and optional support for RS232/UART, CAN-FD, ARINC 429, MIL-STD-1553, and more
- Optional Power & Jitter Analysis - Unlock deeper visibility into power systems and high-speed serial links
- Built-in 60 MHz AWG -- Single-channel arbitrary waveform output with advanced modulation
- Embedded WebServer and SCPI - Full remote control via browser or test automation frameworks
- Matlab Programming Support - Create, render, and run code natively on the scope
- High-Speed Connectivity - Dual Gigabit LAN, USB 3.0/2.0, HDMI, AUX, and ref clock I/O
Applications
- Automated Test & Production Line Integration
- High Speed Digital / Embedded Systems Debug
- Power Electronics / Switching / Converter Testing
- Education / Research Labs
Each Unit Includes
- 1 - 1 GHz, 4-Channel, 10 GSa/s Rack-mounted High-Speed Oscilloscope (UPO7104L)
- 4 - Passive Probes (500 MHz)
- 1 - Power Cord
- 1 - USB Cable
- 1 - Rack-Mounting Brackets
- 1 - Calibration Certificate
- 1 - Quick Start Guide
