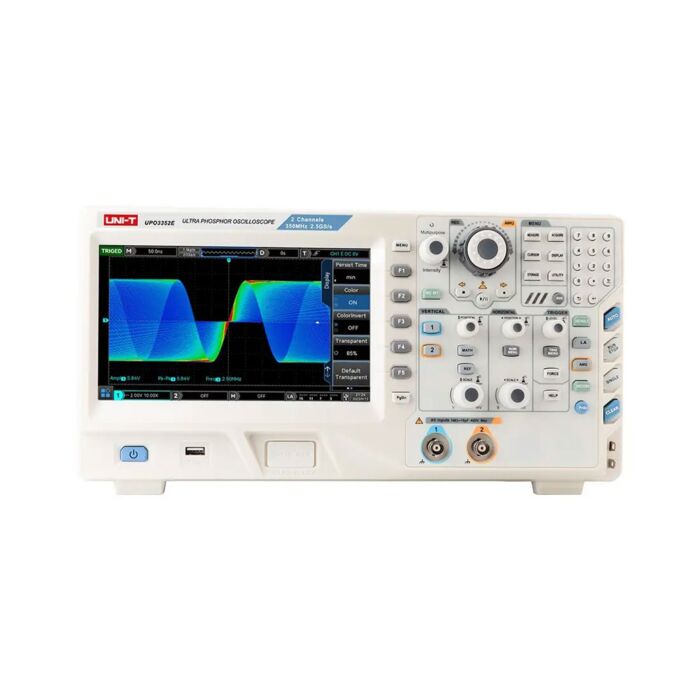

The UPO3352E digital phosphor oscilloscope is a multifunctional and high-performance oscilloscope based on UNI-T's original Ultra Phosphor 2.0technology. It realizes the combination of ease of use, excellent technical indicators and many functional features. It can help users complete the measurement work faster. It is an oscilloscope designed for general design / debugging / testing needs in many fields, such as communication, semiconductor, computer, instrumentation, industrial electronics, consumer electronics, automotive electronics, on-site maintenance, R & D / education, etc. Fast Acquire technology can accurately capture abnormal events such as video, jitter, noise and low wave signals.
- Analog channel bandwidth: 350 MHz
- Real-time sampling rate of analog channel 2.5 GSa/s
- Number of analog channels: 2
- Input impedance: 1 MΩ,50 Ω
- Storage depth of each channel: 70 Mpts, Maximum storage depth of 250 Mpts in single or scan mode
- Waveform capture rate up to 200,000wfms/s
- Supports Bode Plot loop test and analysis function
- Hardware real-time waveform uninterrupted recording and analysis up to 120,000 frames
- Waveform operation functions (+,-, x,
