UPO1000CS series is a multi-function, cost-effective digital phosphor oscilloscope. It can be widely used in the fields of electronic and electrical design, debugging, education and industrial design. UPO1000CS series adopts parallel digital signal processing technology, which greatly improves the data processing speed and waveform capture rate. The original Ultra Phosphor technology can present the cumulative effect of the tested signal as a multi-layered after glow. Compared with traditional digital storage oscilloscopes, the persistence of digital phosphor oscilloscopes can present three-dimensional waveform data of amplitude, time and signal intensity. Fast Acquire technology can accurately capture abnormal events such as video, jitter, noise, and runt signals.

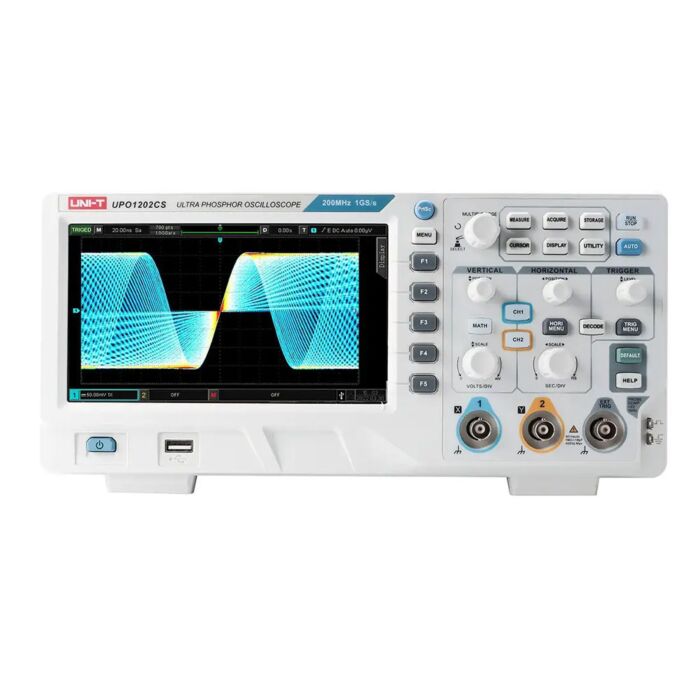

The UNI-T UPO1202CS Digital Phosphor Oscilloscope is a versatile instrument designed to elevate electronic and electrical projects across various domains.
The UPO1202CS can be effortlessly connected and controlled remotely through a web page interface. Enjoy the convenience of dual-platform operation via PC and mobile devices, eliminating the need for local program installations and saving valuable time and space.
The UPO1202CS excels at displaying waveforms from different clock sources, even when their frequencies significantly differ. This feature simplifies waveform parameter analysis, making it convenient to work with diverse signals.
- Analog channel bandwidth: 200 MHz
- Number of analog channels: 2
- Storage depth of each channel: 56 Mpts
- Sampling rate: 1GSa/s (non-interleaving: independent sampling per channel)
- Waveform capture rate: 500,000 wfms/s
- Hardware real-time waveform uninterrupted recording of 100000 waveforms
- Ultra Phosphor super fluorescent display effect, up to 256 levels of gray display
- Supports RS232, I2C, SPI, CAN and LIN trigger
- Innovative RS232, I2C, SPI, CAN and LIN hardware decoding
- Vertical scale: 1 mV/div-20 V/div. Low background noise: <100 µVrms
- 1M points enhanced FFT function, Support frequency setting, waterfall diagram, detection setting and marker measurement etc.
- 36 kinds of waveform parameters can be automatically measured
- Rich trigger functions (edge, pulse width, video, slope, runt, overshoot, delay, timeout, duration, setup and hold, Nth edge and pattern trigger)
- Multi-Scopes support dual-channel independent trigger fluorescence display
- Multi-channel independent 7-bit hardware frequency counter
- DVM supports dual-channel independent AC and DC true RMS measurement
- Waveform arithmetic functions (FFT, +, -, x,
