UPO1002 series digital phosphor oscilloscope adopts innovative technique Ultra Phosphor 2.0 with new appearance upgrade and the function of deep storage, high waveform capture rate, real-time waveform recording and playback and 256-level grayscale display. The series is equipped with the bandwidth of 100 MHz and 200 MHz, real-time sampling rate upto1 GSa/s, 2 analog channels, maximum memory depth of 56 Mpts, maximum waveform capture rate of 500,000 wfms/s, hardware real-time waveform uninterrupted recording and waveform analysis upto 120,000 waveform frames, support DVM module, rich trigger and bus decoding functions, and support full memory hardware real-time decoding. It is widely used in many fields, including communication, semiconductor, IC design, instrumentation, industrial electronics, consumer electronics, automotive electronics, field maintenance, R&D, and education.
The inclusion of an independent DVM module, robust trigger and bus decoding functions, and full-memory hardware real-time decoding speaks directly to the needs of engineers working across various technical domains. The UNI-T UPO1202 is an invaluable tool for tasks related to communication, semiconductor, computer, integrated circuit design, instrumentation, industrial electronics, consumer electronics, automotive electronics, field maintenance, and research and development.
Experience a maximum storage depth of 56Mpts, allowing for the capture and retention of intricate waveform details. This substantial storage capacity, coupled with the system's commitment to capturing comprehensive signal nuances, exemplifies its advanced capabilities in waveform analysis.
The oscilloscope's 1Mpts FFT sampling points enables in-depth frequency domain signal analysis. Users can customize spectrum analyzer functions for comprehensive signal examination, including frequency range, detection mode, and spectrum marking.
- Analog channel bandwidth: 200 MHz
- Analog channel number: 2
- Maximum sampling rate: 1GSa/s
- Vertical scale: 500µV/div to 20 V/div
- Low-base noise: <100µVrms
- Maximum memory depth up to 56Mpts
- Waveform capture rate of up to 500,000 wfms/s
- The hardware can be continuous waveform recording 120,000 frame in real time
- Automatic measurement of 36 waveform parameters, the measurement range divides into screen and cursor area
- Supports 7-digit hardware frequency counter measurement
- DVM supports AC/DC TRMS (true virtual value) measurement
- Waveform calculation function (FFT, add, subtract, multiply, divide, digital filter, logical operation and advanced operation)
- 1M sampling points to enhance FFT function, it supports frequency setting, waterfall curve, demodulation mode and marker measurement
- Multiple trigger functions (edge, pulse width, video, slope, runt pulse, over-amplitude pulse, delay, timeout, duration, setup hold, Nth edge and code pattern)
- Supporting RS232, I2C, SPI trigger
- Innovative RS232, I2C, SPI full memory hardware for real-time decoding
- Ultra phosphor display effect, 256 grayscale display
- 7- inch WVGA (800x480) TFT LCD
- Multiple interfaces: USB Host, USB Device, LAN, EXT Trig, AUX Out (Trig Out, Pass/Fail, DVM)
- Supporting waveform navigation, marker and segment
- Supporting SCPI programmable standard command
- Supports web access and control
- Certifications: cETLus, CE, ROHS, UKCA
Applications
- Embedded & Mixed-Signal Systems Design
- Laboratories / Education / Hobbyist use
- Service, Repair & General Electronics Testing
- Prototyping / R&D
Each Unit Includes

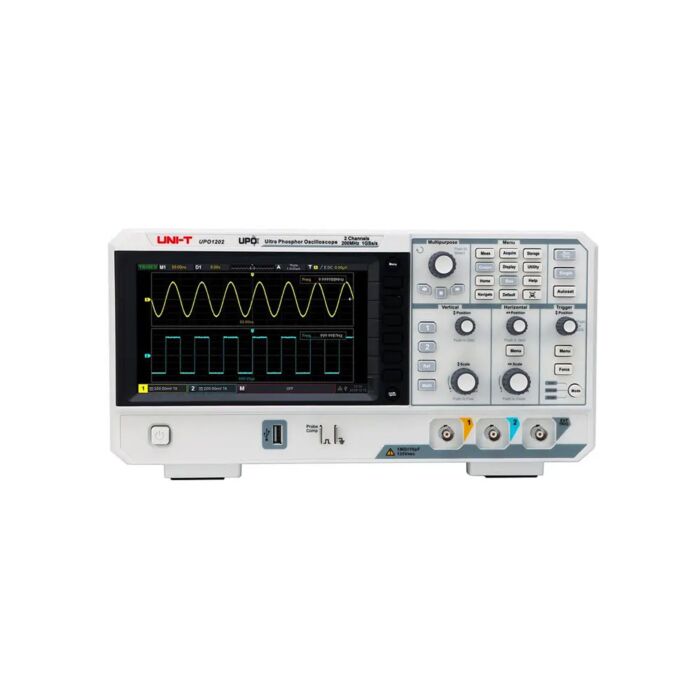

- 1 - 200MHz, 2-Channel, 1 GSa/s Digital Phosphor Oscilloscope (UPO1202)
- 2 - Oscilloscope Probes (UT-P04)
- 1 - Power Cord
- 1 - USB2.0 Printing Cable
