High-Resolution 1000HD series high-resolution oscilloscope has the maximum bandwidth of 150MHz, the maximum sampling rate of 1.25 GSa/s, and is equipped with 4/2 analog channels , with the memory depth of up to 100 Mpts. High-Resolution 1000HD series adopts exclusive UltraPhosphor3.0 technology, achieving the waveform capture rate of up to 500,000 wfms/s, with 256 levels of gray temperature colors, and features an innovative digital trigger system with high trigger sensitivity and low jitter. This oscilloscope supports multiple advanced triggers, serial bus triggering and decoding, and offers advanced sampling and analysis modes such as spectrum analysis, power analysis, histogram, waveform recording, hardware-accelerated template testing, and search and navigation. Additionally, this oscilloscope provides multiple measurements and mathematical operations. High Resolution 1000HD series features a 7-inch capacitive touch screen that supports multiple gestures for common waveform operations. Combined with multiple one-touch keys on the front panel, this greatly optimizes the efficiency of oscilloscope operation and improves the user experience.

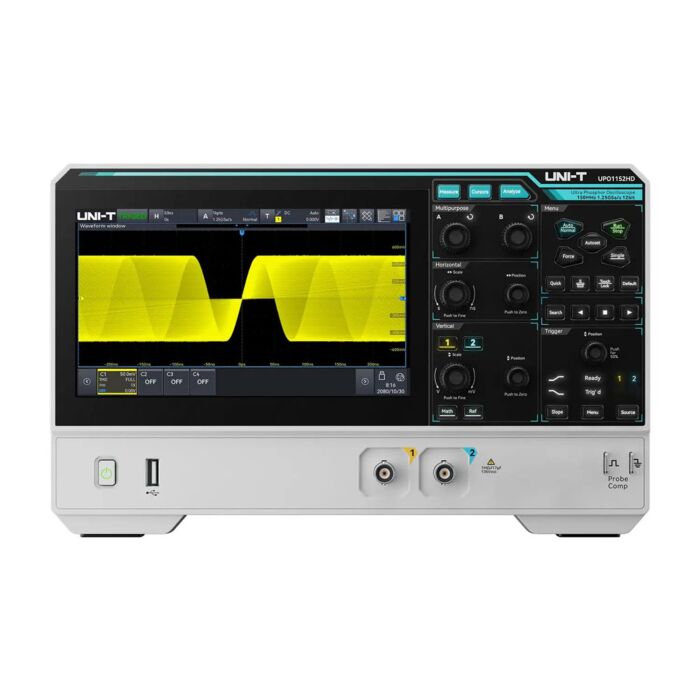

The UNI-T UPO1152HD is a 12-bit high-resolution oscilloscope designed for engineers who need greater bandwidth for precision signal analysis. With 150 MHz bandwidth, 1.25 GSa/s sample rate, and 100 Mpts memory depth, it offers clean acquisition and deep capture. This 2-channel model integrates power analysis, protocol decoding, and advanced spectrum tools—all powered by UNI-T's Ultra Phosphor 3.0 engine and delivered in a compact USB-C form factor with a 7 in. touchscreen.
The UPO1152HD supports 56 automatic measurement types and simultaneous display of up to 21 parameters. Trend graphs and statistical summaries reveal drift and event patterns. Use built-in math functions (+, -, x,
