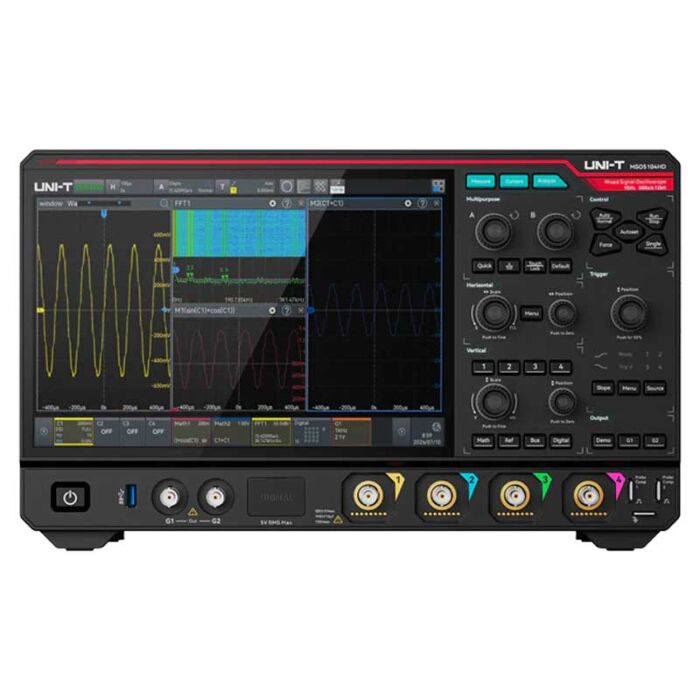

The UNI-T MSO5034HD is a mixed signal oscilloscope offering high-resolution 12-bit vertical accuracy, 350MHz analog bandwidth, and up to 5GSa/s real-time sampling. Designed for engineers and educators alike, the MSO5034HD balances advanced signal analysis with an intuitive user experience.
Powered by Ultra Phosphor 3.0 technology and a vibrant 10.1-inch capacitive touch screen, it delivers a waveform capture rate up to 1,500,000 wfms/s in sequence mode. With 4 analog and 16 digital channels, plus built-in protocol decoding and waveform generation options, the MSO5034HD is a versatile tool for every lab bench.
MSO5000HD series high-resolution oscilloscope has the maximum bandwidth of 1 GHz, the maximum sampling rate of 5 GSa/s, and is equipped with 4 analog channels and 16 digital channels, with the memory depth of up to 500 Mpts. MSO5000HD series adopts exclusive Ultra Phosphor 3.0 technology, achieving the waveform capture rate of up to 1,500,000 wfms/s, with 256 levels of gray temperature colors, and features an innovative digital trigger system with high trigger sensitivity and low jitter. This oscilloscope supports multiple advanced triggers, serial bus triggering and decoding, and offers advanced sampling and analysis modes such as spectrum analysis, power analysis, histogram, waveform recording, enhanced resolution (ERES), hardware accelerated template testing, and search and navigation. Additionally, this oscilloscope provides multiple measurement and mathematical operations. MSO5000HD series features a 10.1-inch capacitive touch screen that supports multiple gestures for common waveform operations. Combined with multiple one-touch keys on the front panel, this greatly optimizes the efficiency of oscilloscope operation and improves the user.
- 12-bit Vertical Resolution - Reveals signal details missed by conventional 8-bit oscilloscopes
- 350MHz Analog Bandwidth - Ideal for embedded, automotive, and educational applications
- Up to 5GSa/s Sampling - Capture high-speed signal transitions with confidence
- 16 Digital Channels - Mixed-signal analysis made simple with synchronized digital capture
- Ultra Phosphor 3.0 Engine - Up to 1.5M wfms/s sequence mode with 256-level display grading
- Touchscreen Display - 10.1-inch HD capacitive screen with gesture support
- 4M FFT Points - Enhanced spectral analysis with waterfall view and multi-marker support
- Optional Function Generator - 50MHz dual-channel AWG with Bode Plot capability
- Protocol Decoding - UART, I2C, SPI standard; CAN, LIN, FlexRay optional
- Advanced Triggering - Includes zone trigger, runt, pattern, and setup/hold triggers
Applications
- Embedded / Microcontroller / FPGA Systems
- Power Electronics & Power Supply Design
- Analog Mixed-Signal Circuit Debugging & Characterization
- Automotive / Automotive Electronics / Vehicle Network Systems
- Communication / Serial Bus & Interface Testing
- Research, Education & Instruction Labs
- Semiconductor / IC / Component Characterization
- EMI / Noise / Signal Integrity Analysis
Each Unit Includes
- 1 - 350MHz, 4-Channel, 5 GSa/s High-Resolution Mixed Signal Oscilloscope (MSO5034HD)
- 4 - 500MHz Passive Probes (UT-P07A)
- 1 - USB Cable (UT-D30)
- 1 - BNC-BNC Cable (UT-L45)
- 1 - Alligator Leads Set (UT-L02A)
- 1 - Power Cord
- 1 - Calibration Certificate
