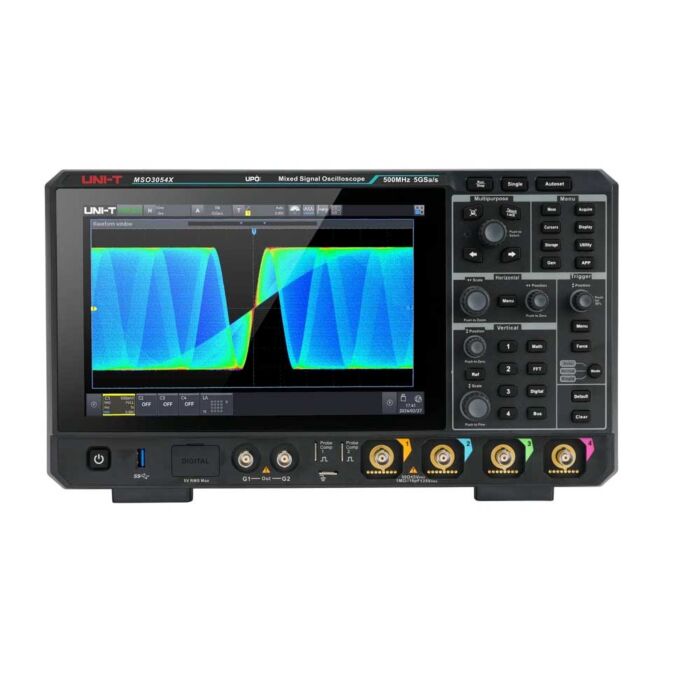

The UNI-T MSO3054X is a Nine-in-One Benchtop powerhouse. The UNI-T MSO3034X offers one instrument that can be a 500MHz, 4Ch High-Definition Digital Oscilloscope, Logic Analyzer, Function/Arbitrary Waveform Generator, Spectrum Analyzer, Digital Voltmeter, High-Precision Frequency Counter, Protocol Analyzer, Bode Plot Analyzer, and Power Analyzer. All with up to 5 years warranty.
Users have several options to extend the functionality of the MSO3054X. The UNI-T UT-M15 logic probes can be added for 16 channels of digital logic analysis, with logic software already included. Unlock the built-in dual-channel, 50MHz arbitrary function generator with the MSO3000X-AWG.
Once you unlock the Function Generator, you can turn your MSO3054X into a Bode Plot analyzer. Extend your MSO3000X to be a Power Analyzer and add the ability to perform Power Quality, Harmonic Analysis, Ripple Wave Analysis, Loop Analysis, and Safety Operation Area with option MSO3000X-PWR. Need more Bus triggering and decoding options. Add single Bus types, including CAN, CAN-FD, FlexRay SENT, Audio, MIL-STD-1553B, ARINC429, and Manchester, either individually or save with Decode Bundles.
UNI-T's Autoset function uses a fast fuzzy algorithm with multi-channel parallel processing, allowing the oscilloscope to quickly and accurately detect signal amplitudes and frequencies. This improvement opens all channels in under 1.5 seconds and a single channel in less than 1 second, enhancing efficiency and reducing mistakes.
The MSO3000X series offers a 500 Mpts memory depth, allowing electrical engineers to capture and analyze tens of thousands of waveforms in a single capture, saving time on manual searches. With customizable search conditions and advanced analysis functions, this upgrade boosts efficiency and enables more focused design and troubleshooting.
The UNI-T MSO3054X Mixed Signal Oscilloscope has an 10.1-inch multi-touch screen and traditional button-and-knob operation options provide a seamless and interactive experience, ensuring users can work efficiently.
MSO3000X series mixed signal oscilloscope with the maximum bandwidth of 500 MHz, maximum sampling rate of 5 GSa/s and equipped with 4 analog channels and 16 digital channels, the memory depth up to 500 Mpts. MSO3000X has unique Ultra Phosphor 3.0 technology, the waveform capture rate is up to 2,000,000 wfms/s, 256 grey temperature color, innovative digital trigger system with high trigger sensitivity and low jitter. This oscilloscope supports multiple advanced triggers, serial bus trigger and decoding, and supports the advanced sampling and analysis mode of spectrum analyzing, power analysis, histogram, waveform recording, enhanced resolution (ERES), hardware acceleration template testing , Search and Navigate. In addition, this oscilloscope has multiple measurements and mathematical operations. MSO3000X series adopts 10.1-inch capacitive touch screen that supports multiple gestures for common waveform operations and combined with multiple one-touch keys on the front panel, this greatly optimizes the efficiency of oscilloscope operation and improves the user experience.
- Bandwidth: 500MHz
- Analog Channels: 4
- Digital Channels: 16 (requires probe sold separately)
- Real-time Sample Rate: 5GSa/s
- Max. Memory Depth: 500Mpts
- Waveform Capture Rate: 2,000,0000wfms/s
- Display: 10.1" Touch Screen
- Nine in one, space-saving unit (350MHz, 4ch oscilloscope, a spectrum analyzer, a 4-digit voltmeter, a 7-digit frequency counter, and serial bus protocol analyzer
- Vertical Resolution: 8-bit, 12-bit ERES
- Parameter measurement adds histogram and line graph display
- Up to 200,000 frames of uninterrupted hardware real-time waveform recording and analysis, with USB memory export support waveform recording and analysis
- Maximum 4 Mpts enhanced FFT, supporting the spectrum analyzer function of frequency setting, waterfall curve, detection setting, and marker
- 54 kinds of parameter measurement
- Multi-channel 7-digit hardware frequency counter, supporting adjustable frequency refresh time and effective digit
- 4-digit Digital Voltmeter (DVM): DC, AC RMS, and DC+AC RMS
- Multiple trigger types: edge, pulse width, ramp, runt pulse, over-amplitude pulse, delay, timeout, duration, setup & hold, Nth edge, and code pattern
- Protocol trigger and decoding functions. Included: RS, 232/UART, I2C, SPI. Optional: CAN, CAN-FD, LIN, FlexRay, AUDIO, MIL-STD-1553B, Manchester, SENT, ARINC429
- Zone triggering for capturing accidental signal and observing complicated signal
- Ultra Phosphor 3.0 super phosphor display effect, up to 256 grey display
- Multiple peripheral interfaces: USB 3.0 Host, USB 3.0 Device, LAN, EXT Trig, AUX Out (Trig Out, Pass/Fail, DVM), Gen Out, HDMI
- SCPI (Standard Command for Programmable Instrument)
- Built-in Webserver for accessing and controlling the instrument through a browser, supporting PC/Mobile phone device for cross-platform access to the instrument
Applications
- Embedded Systems & Microcontroller Debugging
- Power Electronics / Power Supply Design & Analysis
- Electronics Design, Debugging, and Verification
- Automotive / Sensor / Vehicle Bus Diagnostics (with optional modules)
- Aerospace / Avionics / Communication Buses (optionally)
- Education / Research / Lab Use
Each Unit Includes
- 1 - 350MHz, 4-Channel, 5 GSa/s Mixed Signal Oscilloscope (MSO3034X)
- 1 - Power Cord
- 1 - USB3.0 Printing Cable
- 4 - Oscilloscope Probes (UT-P07A)
- 1 - BNC Straight-Through Cable (UT-L45)
- 1 - BNC to Alligator Clip Cable (UT-L02A)
