The UNI-T MSO3034HD engineered for affordable precision, boasts a maximum of 200 MHz bandwidth and 2.5 GSa/s sampling rate, with four analog and 16 digital channels, supported by a substantial 500 Mpts storage depth.
Incorporating Ultra Phosphor 3.0 technology, the MSO3034HD achieves up to 1,500,000 wfms/s capture rates, displayed in rich detail with 256 gray temperature colors. Enhanced by a high-sensitivity digital trigger system with minimal jitter, it sets the standard in signal accuracy.
The MSO3034HD includes advanced triggers, serial bus analysis, and sampling and analysis modes such as spectrum and power analysis, hardware-accelerated template testing, and easy-to-use search and navigation. To make testing easier, users will also find a multitude of measurement and mathematical operations. The MSO3034HD also features a 10.1-inch capacitive touchscreen, boosting operational efficiency with intuitive gestures and one-touch keys.
MSO3000HD series high-resolution oscilloscope has the maximum bandwidth of 500 MHz, the maximum sampling rate of 2.5 GSa/s, and is equipped with 4 analog channels and 16 digital channels, with the storage depth of up to 500 Mpts. MSO3000HD series adopts exclusive Ultra Phosphor 3.0 technology, achieving the waveform capture rate of up to 1,500,000 wfms/s, with 256 levels of gray temperature colors, and features an innovative digital trigger system with high trigger sensitivity and low jitter. This oscilloscope supports multiple advanced triggers, serial bus triggering and decoding, and offers advanced sampling and analysis modes such as spectrum analysis, power analysis, histogram, waveform recording, enhanced resolution (ERES), hardware-accelerated template testing, and search and navigation. Additionally, this oscilloscope provides multiple measurement and mathematical operations. MSO3000HD series features a 10.1-inch capacitive touch screen that supports multiple gestures for common waveform operations. Combined with multiple one-touch keys on the front panel, this greatly optimizes the efficiency of oscilloscope operation and improves the user experience.
- Bandwidth: 350MHz
- Analog Channels: 4
- Digital Channels: 16
- Real-time sampling rate of the analog channel is up to 2.5 GSa/s
- Maximum sampling rate of the digital channel is 1.25 GSa/s
- Max. Memory Depth: 500Mpts
- Superior Resolution Technology - 12-bit ADC delivers 4096 quantization levels for unmatched signal detail
- Excellent Performance Specifications - 350 MHz bandwidth, 2.5 GSa/s sampling rate, and 500 Mpts memory depth
- Complete Mixed-Signal Analysis - 4 analog channels combined with 16 digital channels for system-level debugging
- Ultra Phosphor 3.0 Technology - Capture rates up to 1,500,000 wfms/s for detecting intermittent events
- Integrated Multi-Instrument Platform - Oscilloscope, logic analyzer, function generator, spectrum analyzer, digital voltmeter, frequency counter, protocol analyzer, Bode plot analyzer, and power analyzer
- Modern Touch Interface - 10.1-inch HD capacitive multi-touch screen with intuitive gesture support
- Versatile Triggering Options - Comprehensive trigger types including edge, pulse width, video, ramp, and zone triggering
- Extensive Measurement Capabilities - 54 measurement parameters with statistical analysis, histograms, and trend visualization
- Comprehensive Protocol Analysis - Support for RS232/UART, I²C, SPI, and optional automotive and aerospace protocols
- Flexible Connectivity - USB host/device, LAN (VXI11), HDMI, and Wi-Fi for remote operation and data transfer
Applications
- Embedded System Development
- Mixed Signal Design & Debugging
- Power Electronics & Power Supply Design
- Education & Teaching Labs
- Consumer / IoT Device Testing
- Protocol / Bus Analysis
- Signal Integrity & Noise Analysis
- Field Service & Maintenance
- Product Validation & QA
Each Unit Includes

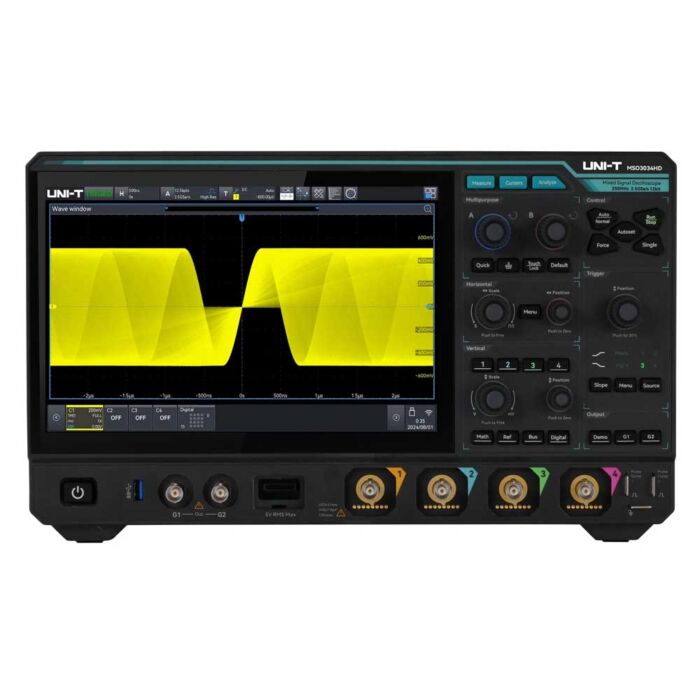

- 1 - 350MHz, 4+16 Channel, 2.5GSa/s, 12bit Mixed Signal Oscilloscope (MSO3034HD)
- 1 - Power Cord
- 1 - BNC-BNC Direct-Through Line (UT-L45)
- 1 - BNC-Red and Black Alligator Connecting Wire (UT-L02A)
- 4 - Passive probe (500 MHz/350 MHz/200 MHz) (UT-P07A/UT-P08A/UT-P05)
