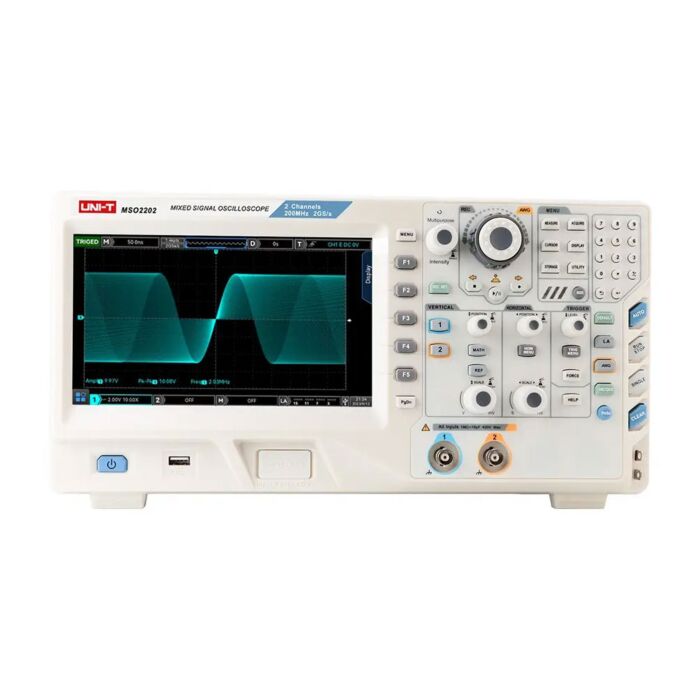

The UNI-T MSO2202 Mixed Signal Oscilloscope has an 8-inch multi-touch screen and traditional button-and-knob operation options provide a seamless and interactive experience, ensuring users can work efficiently.
The MSO2202 ADC design allows for full capacity on every channel. This MSO offers you accuracy, a wealth of capabilities, and the piece of mind of up to 5 years worry free use with UNI-T warranty extension.
The MSO/UPO2000 series digital phosphor oscilloscope is a multifunctional and high-performance oscilloscope based on UNI T's original Ultra Phosphor technology. It realizes the combination of ease of use, excellent technical indicators and many functional features. It can help users complete the measurement work faster. It is an oscilloscope designed for general design / debugging / testing needs in many fields, such as communication, semiconductor, computer, instrumentation, industrial electronics, consumer electronics, automotive electronics, on-site maintenance, R & D / education, etc. Fast Acquire technology can accurately capture abnormal events such as video, jitter, noise and low wave signals.
- Bandwidth: 200MHz
- Analog Channels: 2
- Digital Channels: 16 (UT-M15 Logic probe included)
- Real-time Sample Rate: 2GSa/s
- Max. Memory Depth: 56Mpts
- Waveform Capture Rate: 1,000,000wfms/s
- Display: 8in Multi-point Capacitive Touchscreen
- Versatile Performance: suited for a wide range of applications, including communication, semiconductor, computer, instrumentation, industrial electronics, consumer electronics, automotive electronics, on-site maintenance, R&D, and education
- Enhanced Channel Capacity: With four analog channels and 16 digital channels (including the UT-M15 Logic probe), you have the flexibility to measure multiple signals simultaneously
- Precise Signal Capture: accurately capture abnormal events like video, jitter, noise, and low-wave signals
- Advanced FFT Analysis: Utilize the Oscilloscope's 4M pts enhanced FFT to gain insight into harmonic content, distortion, noise in DC power supply, and even perform vibration analysis
- Robust Trigger Functions: edge, pulse width, video, and pattern triggers
- Logic Analysis Simplified: Included Logic Analyzer software and Logic Analysis Probe UT-M15 makes analyzing digital signals a breeze
- Full Memory Hardware Decoding: Experience lightning-fast decoding with the deep storage of 56Mpts
- Channel Split Screen: Display waveforms with ease, offering customization options for each channel
- XY Mode: Measure phase differences between signals with the XY mode cursor measurement, providing valuable insights into your data
- Waveform operation functions (+, -, x, ÷, digital filtering, logic operation and advanced operation)
- Automatic measurement of 36 waveform parameters
- Full-memory real-time hardware triggering, including Area triggering for capturing occasional and complex signals
- Rich trigger functions: edge, pulse, video, slope, runt, over amplitude pulse, delay, timeout, duration, setup/hold, Nth edge and pattern trigger
- Connectivity options include: USB Device/Host, LAN, VGA, EXT Trigger, and AUX Out
- Certifications: cETLus, CE, ROHS, UKCA
Applications
- Embedded / Microcontroller Systems
- Digital Logic / Bus Analysis
- Serial Protocol Debugging
- Power / Analog Circuit Testing
- Education & Training
- Research & R&D Prototyping
- Test / Maintenance / Repair
Each Unit Includes
- 1 - 200MHz, 2+16 Channel, 2 GSa/s Mixed Signal Oscilloscope (MSO2202)
- 1 - Power Cord
- 1 - USB2.0 Printing Cable
- 2 - Oscilloscope Probes (UT-P04)
- 1 - Logic Probe (UT-M15)
