Overview

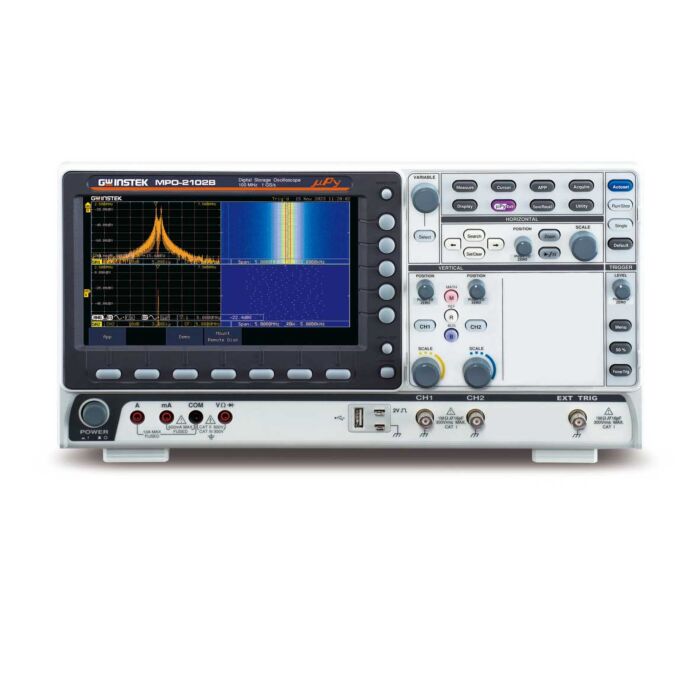

The Instek MPO-2102B Multi-Function Programmable Digital Storage Oscilloscope includes the additional functionality of a dual-channel spectrum analyzer with spectrogram, dual-channel 25MHz arbitrary waveform generator, digital multimeter, and dual-channel DC power supply.
5-in-1 unit includes functionality of digital storage oscilloscope, dual-channel spectrum analyzer with spectrogram, dual-channel 25MHz arbitrary waveform generator, digital multimeter, dual-channel DC power supply
Uses Python scripts for automation purpose control
IC ^2/SPI/UART/CAN/LIN serial bus trigger/decoding function
CAN-FD, USB 2.0 (full speed) digital decoding
Provides 5 innovative functions of Python script execution, component Tester I-V curve, MQTT protocol support, serial bus decode, spectrogram
Python APP includes categories of BJT output characteristic curve, LC oscillator circuit frequency/temperature characteristic curve, fuse endurance test, LED forward bias characteristic curve, barcode scanner measurement application
Digital Storage Oscilloscope (DSO) Specifications
Channels: 2 + Ext
Bandwidth (DC): 100 MHz, -3 dB
Rise Time (Calculated): 3.5 ns
Bandwidth Limit: 20 MHz
Real Time Sample Rate: 1 GS/s
Python Script Execution: Basic Version
Spectrum Analyzer (SA) Specifications
Frequency Range (DC): 500 MHz
Span: 1 kHz to 500 MHz
Resolution Bandwidth: 1 Hz to 500 kHz
Arbitrary Waveform Generator (AWG) Specifications
Channels: 2
Sample Rate: 200 MS/s
Vertical Resolution: 14 bits
Max. Frequency: 25MHz
Digital Multimeter (DMM) Specifications
Reading: 5,000 counts
Voltage Input: CAT II 600VRMS, CAT III 300VRMS
Voltage (AC): 50 mV, 500 mV, 5V, 50V, 700V
Current (AC): 50 mA, 500 mA, 10A
Voltage (DC): 50 mV, 500 mV, 5V, 50V, 500V, 1000V
Current (DC): 50 mA, 500 mA, 10A
Power Supply (PS) Specifications
Output Channel: CH1, CH2
Output Range: 1V to 5V/1A, 5V to 10V/0.5A, 10V to 20V/0.25A
Peak Current: 1A @ 250 ms
Display
TFT LCD Type: 8 in. TFT LCD WVGA color display
Display Resolution: 800 x 480 px
Interface
USB 2.0 Hi-Speed Host Port: One on front panel, supports USB 2.0 mass storage class (FAT32/NTFS format)
USB 2.0 Hi-Speed Device Port: One on rear panel, supports USB TMC class
Ethernet (LAN) Port: RJ-45 connector, 10/100 Mbps with HP Auto-MDIX, supports TCP sockets communication via default 5025 port number
Miscellaneous
Multi-Language Menu: Available
Operating Environment: 0° to 50°C temperature, ≤ 80% @ 40°C or below/≤ 45% @ 41° to 50°C relative humidity
Internal Flash Disk: 100M bytes, single-level cell flesh memory
Each Unit Includes
1 - Multi-Function Programmable Digital Storage Oscilloscope, Basic Version (MPO-2102B)
