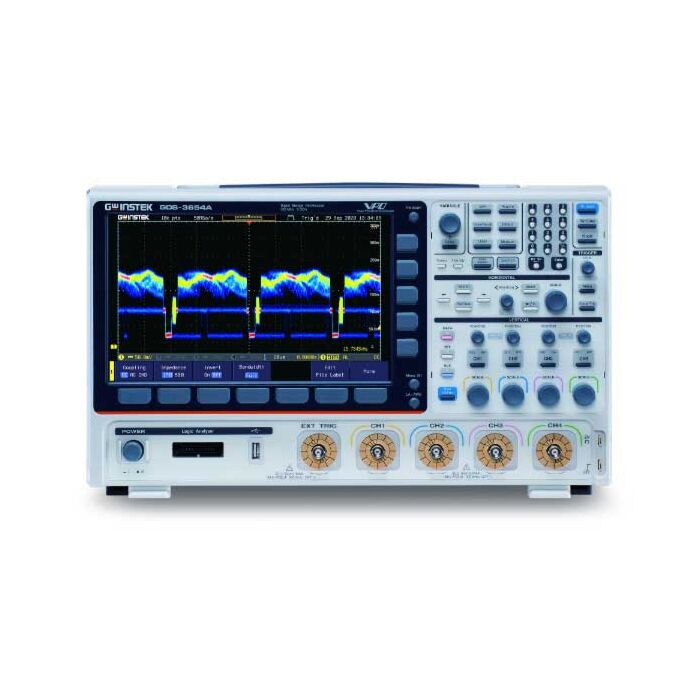

GW Instek GDS-3654A Mixed Signal Oscilloscope 650MHz, 5GS/s, 4 channel with LAN/USB

The Instek GDS-3654A Digital Storage Oscilloscope is equipped with a dual-channel spectrum analyzer which allows the user to measure and analyze the frequency domain signals of two channels simultaneously. The dual-channel arbitrary waveform generator provides a variety of waveforms for comparison purposes.

• Equipped with Dual-Channel Spectrum Analyzer (DC to 2.5 GHz) with Spectrogram
• Equipped with Dual-Channel 25 MHz Arbitrary Waveform Generator
• Optional 13 sets of power analysis measurements with GCP/530/GCP-1030 Current Probes (not included)
• Optional upgrade to Mixed Signal Oscilloscope (MSO) with DS3A-16LA 16-Channel Logic Analyzer Plug-In (not included)
• 490,000 segments of segmented memory
• Waveform search function optimizes record length efficiency
• Zoom window, play/pause allows for rapid navigation of waveforms
• 38 sets of automatic measurement offers various measurement selections
• High-resolution acquisition mode
• Serial bus trigger/decoding functions of I^2C/SPI/UART/CAN/LIN
• Flexible remote control connectivity
• Standard interfaces of USB/LAN/RS-232
• Optional interface of GPIB with factory-installed DS3A-GPIB upgrade (not included)

• Engineering Verification/Testing
• Switching Mode Power Supply Measurement
• Product Development/Debugging

• Channels: 4 + Ext.
• Bandwidth: DC to 650 MHz (-3 dB) at 50 Ohms, DC to 500 MHz (-3 dB) at 1 MOhm input impedance
• Rise Time (Calculated): 535 ps
• Bandwidth Limit: 20M/100M/200M/300 MHz
• Real-Time Sample Rate: 5 GS/s (half channels), 2.5 GS/s (all channels)

• Frequency Range: DC to 2.5 GHz
• Span: 1 kHz to 2.5 GHz
• Resolution Bandwidth: 1 Hz to 2.5 MHz

• Channels: 2
• Sample Rate: 200 MS/s
• Vertical Resolution: 14 bits
• Max. Frequency: 25 MHz

• TFT LCD Type: 10.2 in. TFT LCD WVGA color display
• Waveform Update Rate: 200,000 wfms/sec.
• Display Resolution: 800 x 480 px

• RS-232C: DB-9 male connector
• USB Port: USB 2.0 high-speed host port (x1)/USB high-speed 2.0 device port (x1)
• Ethernet Port: RJ-45 connector, 10/100 Mbps with HP Auto-MDIX
• Power Supply Receptacles: +/- 12V/500 mA for current probe usage (x4)

• Internal Flash Disk: 800M bytes, single-level cell flash memory
• Line Voltage Range: 100VAC to 240VAC, 50 Hz to 60 Hz, 100W

Each Unit Includes

• 1 - Digital Storage Oscilloscope with Dual-Channel Spectrum Analyzer/Arbitrary Waveform Generator(GDS-3654A)
• 4 - Passive Probes, 500 MHz, 10:1 (GTP-501R)
• 1 - Power Cord
• 1 - User Manual
