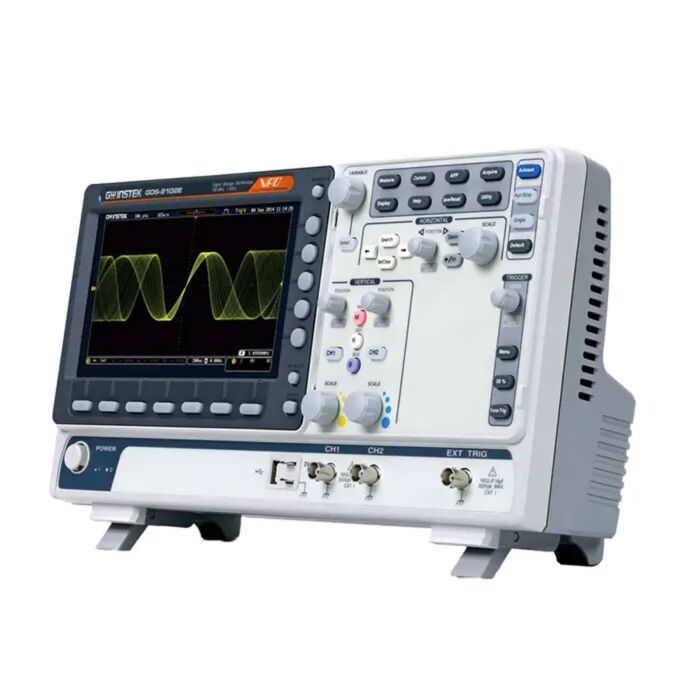

The GDS-2000E digital oscilloscope features bandwidth selections of 200MHz, 100MH, and 70MHz. Two-channel model provides 1GSa/s real-time sampling rate for each channel; four-channel model provides 1GSa/s maximum real-time sampling rate. The 8-inch 800*480 TFT LCD display and the minimum 1mV/div vertical range allow the GDS-2000E series to measure complex feeble signals and clearly display measurement results.
With respect to the memory depth, the GDS-2000E series digital oscilloscope provides 10M long memory for users to completely retrieve and analyze waveforms. Users, based upon the application requirements, can select 1K, 10K, 100K, 1M or 10M memory depth. Short memory depth collocating with the high sampling rate allows users to observe fast-changing waveforms and, on the other hand, long memory depth aims for continuously changing waveforms.
The GDS-2000E series is equipped with waveform search and segmented memory functions to expand the flexible applications of 10M long memory. The segmented memory can be divided the maximum into 29,000 sections for users to bypass any unimportant waveforms so as to swiftly search all required waveforms. With the function, more meaningful waveforms can be saved and target waveforms can be displayed rapidly. With the waveform search function, users can rapidly search desired waveforms according to the required trigger conditions.
- Bandwidth: 100 MHz
- Number of Channels: 2
- Sample Rate: 1 GSa/s
- Standard 10M Memory Depth Per Channel
- 8 bits : 1mV~10V Vertical Resolution
- 1ns/div ~ 100s/div (1-2-5 increments); ROLL: 100ms/div ~ 100s/div Time Base Range
- Waveform Update Rate of 120,000 wfm/s
- 8 in. TFT LCD WVGA Color Display
- 800 Horizontal x 480 Vertical Pixels (WVGA) Display Resolution
- Max. 1M pts of FFT to Get Higher Resolution in Frequency Domain
- Visual Persistence Oscilloscope (VPO) Technology to Display Less-Frequently-Occurred Signals
- Digital Filter Function
- Segmented Memory and Waveform Search Functions
- I C/SPI/UART/CAN/LIN Serial Bus 2
- Trigger and Decoding Function Datalog Function for Waveform Observation in Long Period of Time
- Network Storage Function
Applications
- Educational Training and Laboratory
- QA Tests
- Serial Bus Design and Debugging
- Maintenance Services
Each Unit Includes
- 2 - 100 MHz (10:1/1:1) Switchable Passive Probes (GTP-100B-4)
- 1 - Power Cord
- 1 - Quick Start Guide
- 1 - User Manual
