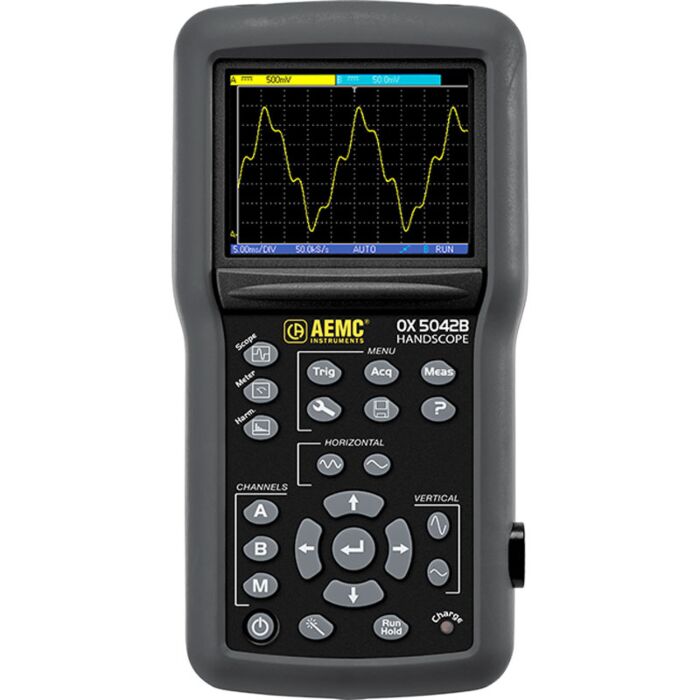

| CHANNELS |
| Inputs / Bandwidth |
2 X 600 V Isolated channels / 40 MHz |
| Input Impedance |
1 MΩ ± 0.5 %, 17 pF |
| INTERFACE |
| Screen Specifications |
Color 3.5 in TFT LCD 320 x 240 – LED Backlighting |
| Display Mode |
2500 real acquisition points on screen |
| Traces On Screen |
2 Traces + 2 References + memory trace or Math calculation |
| Front Panel Control |
24 keys |
| VERTICAL |
| Vertical Sensitivity |
5 mV to 200 V/div and up to 156 μV/div in vertical zoom mode (12-bit converter) – Accuracy ± 1 % |
| Max Input Voltage |
600 Vrms CAT III – Derating -20 dB per decade from 100 kHz |
| HORIZONTAL |
| Time Base Speed |
25 ns/div to 200 s/div. – accuracy 0.1-Roll mode from 100 ms to 200 s/div |
| Horizontal Zoom |
Zoom factor : x1, x2, x5 |
| TRIGGER |
| Mode |
On all channels: Auto, Triggered, One-shot & trigger Roll |
| Type |
Edge, Pulse width (20 ns to 20 s) |
| Coupling |
AC or DC (dependent of the coupling of the triggering channel)- HF, LF, or noise rejection |
| Sensitivity |
≤ 1.2 divisions p-p up to 40 MHz |
| DIGITAL MEMORY |
| Max. Sampling Rate |
2 GS/s in ETS – 50 MS/s in Single Shot Mode on each channel (9 bits) |
| Memory Depth |
2500 points/channel |
| Memory Capacity |
2 MB for storing various types files: trace, text, configuration, image files |
| GLITCH Mode |
Duration ≥ 20 ns – 1,250 MIN Max pairs |
| Display Modes |
Envelope, Averaging (factors 2 to 64) and XY (vector) |
| OTHER FUNCTIONS |
| Math Functions |
Channel inversion,, +, -, x, / and (adjustable scaling) |
| Automatic Measurement |
18 time, level, phase measurements |
| Multimeter Mode |
2 channels, 8000 counts + Min and Max bargraph – TRMS – graphic recording of 2700 measurements (5 min to 31 days) |
| AC, DC, AC+DC Voltages |
600 mV to 600 VRMS, 800 mV to 800 VDC: accuracy 2% R + 20 cts Bandwidth 50 kHz |
| Active Power and PF |
Single phase-Balanced 3 phase, with or without Neutral, simultaneous display of current |
| Resistance, Temperature, Capacitance, Frequency, Speed Rotation and Diode Test |
| Harmonic Analyzer Mode |
| Multi-Channel Analysis |
2 channels, 31 orders, fundamental from 40 to 450 Hz |
| GENERAL FEATURES |
| Interface |
Isolated USB, SX-Metro software included |
| Batteries |
(6) 1.2 V AA NiMH rechargeable batteries, External charger |
| Charging Time |
External power adapter, (98 to 264) VAC (50/60 Hz) 2 hrs 30 min when OFF |
| Battery life |
Up to 8 hrs 30 min |
| Dimensions (L x W x H) |
(8.43 x 4.33 x 2.24) in (214 x 110 x 57) mm |
| Weight |
2.65 lbs. (1.2 kg) |
| Altitude Operating |
2000 m (6560 ft) |
| Operating Temperature |
(32 to 104) °F (0 to 40) °C ≤80 % RH |
| Storage Temperature |
(-4 to 140) °F (-20 to 60) °C |
| IP Rating |
IP54 per IEC 60529 |
| Safety |
IEC/EN 61010-1 (1000 V CAT II; 600 V CAT III), IEC 1326-1 |
