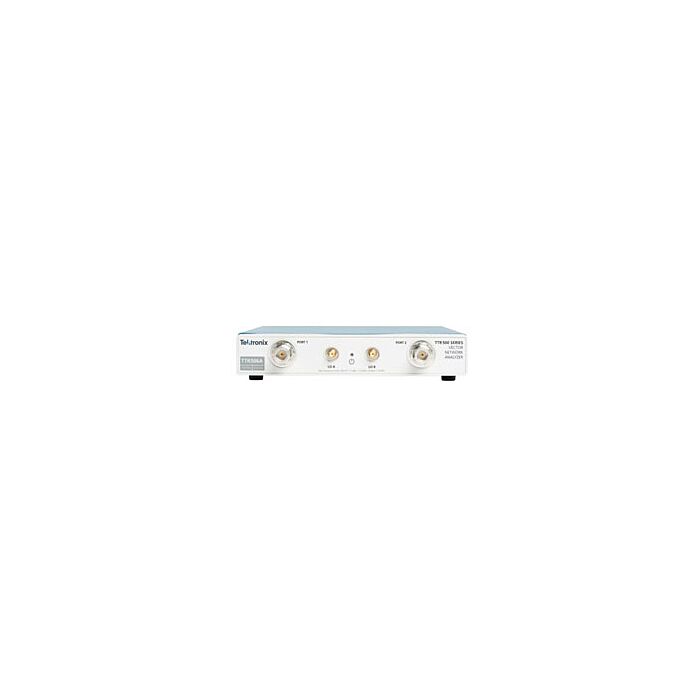

Tektronix TTR506A USB Vector Network Analyzer, 100KHz-6GHz

Order # TTR506A | Mfg # TTR506A
Save 41%
$16,900.00
$10,040.81
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

Product Highlights

The TTR506A from Tektronix is a TTR500 series 100KHz to 6GHz USB vector network analyzer. The Tektronix TTR506A 2-port, 2-path vector network analyzer is a breakthrough an unmatched combination of measurement performance and convenience. The TTR500 offers industry-leading price and performance with more than 122dB dynamic range and less than 0.008dB RMS trace noise, its performance similar to expensive, conventional benchtop VNAs. It has a form factor small enough to fit in a briefcase Typical applications include antenna matching and tuning, RF component design and validation and education.

  • Full 2-port 2-path S-parameter measurement (S11, S21, S12, S22) in a variety of formats
  • Complete vector network analysis capability with Tektronix VectorVu-PC software

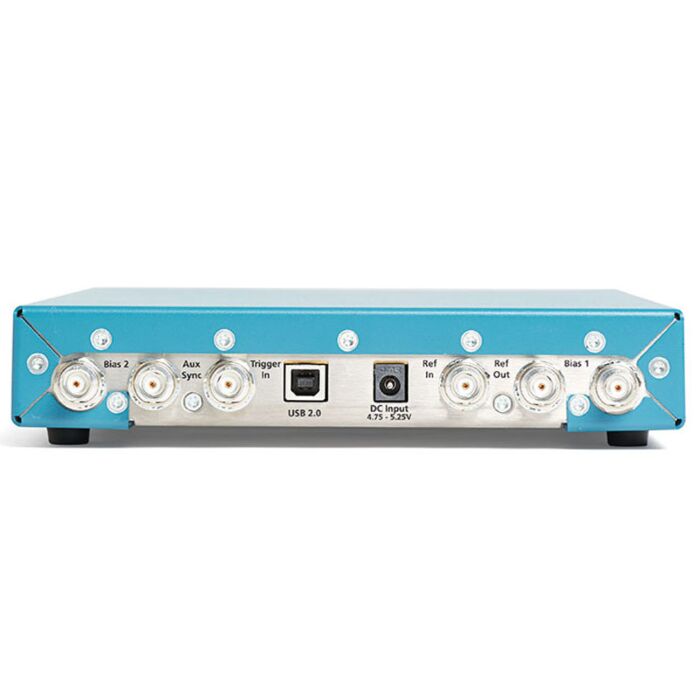

  • Built-in bias tee accessible on both ports to bias active devices
  • Application programming interface (API) for Microsoft Windows environment and LabView driver
  • Robust SCPI command interface to optimize code migration
  • Touchstone file support (import/export) for use with electronic design automation simulation tools
  • Offline simulation mode for analysis of S-parameter files when disconnected from the instrument
  • Output power of -50dBm to +7dBm, < 0.008dB RMS trace noise

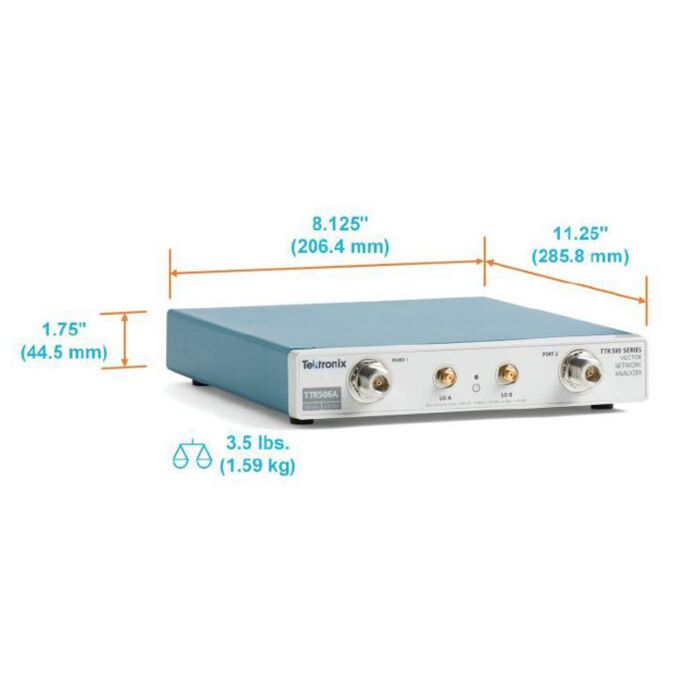

  • Dimension is length 11.25" x width 8.125" x depth 1.75", weight is 3.5lbs (1.59Kg)
  • Dimension of 11.25 x 8.125 x 1.75" (28.58 x 20.64 x 4.45cm) (LxWxD), weight of 3.5lbs (1.59Kg)
