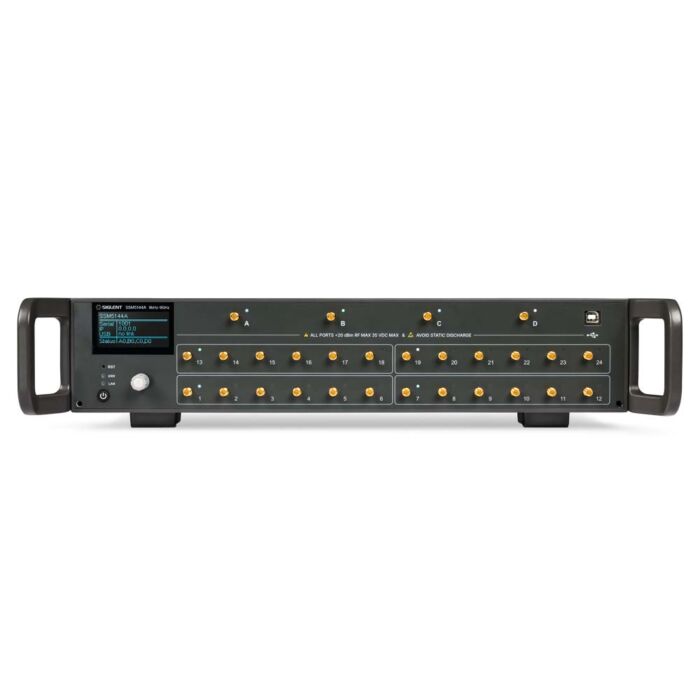

Siglent SSM5144A Switch Matrix, 4 inputs, 24 outputs, 3.5mm f, 9kHz to 9GHz

Order # SSM5144A | Mfg # SSM5144A
$18,281.00
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States and Canada only.

Overview

Product Highlights

    • Maximum frequency: 9 GHz
    • Maximum number of input ports: 4
    • Maximum number of output ports: 24
    • RF connector: 3.5mm female
    • Screen size: 2.4-inch
    • Maximum input power: 20 dBm
    • Characteristic impedance: 50 ohm
    • Maximum input DC voltage: 35 V
    • Size: W_H_D=88.5_425_417.6mm
    • Support a simplified multi-port calibration algorithm
    • Interface: LAN, USB Device, Direct Control (in), Direct Control (out)
