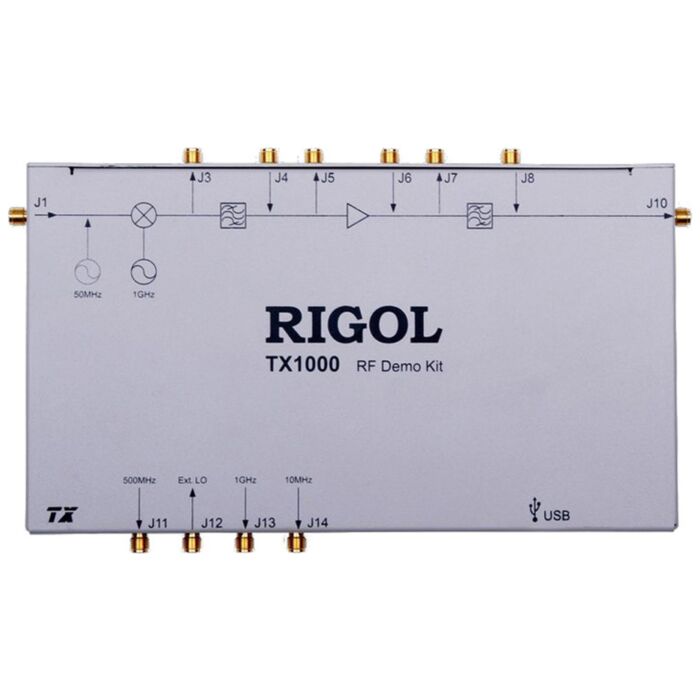

RIGOL TX1000
RF Demonstration Board w/Built- in 1GHz Oscillator
Order #: TX1000
Mfg #: TX1000
$993.00
$993.00
Availability: Ships in 3-4 weeks
Product Highlights
- For DSA-815/TG Models
- Energized by USB; connected with PC for operations and controlled through the program control panel on the PC
- Provide 10MHz reference signal output and can easily realize clock synchronization with other devices of the system
- Built-in 50MHz signal which can be connected to the input port by “switches” to facilitate users’ learning, operation, and demonstration of the spectrum analyzer
- 500MHz and 1GHz local oscillator signal outputs with good phase noise to convenient users’ various measurement needs when there is no signal source
- Modular circuit design; provide interfaces for users to make separate measurement of any component; enable to replace any component
