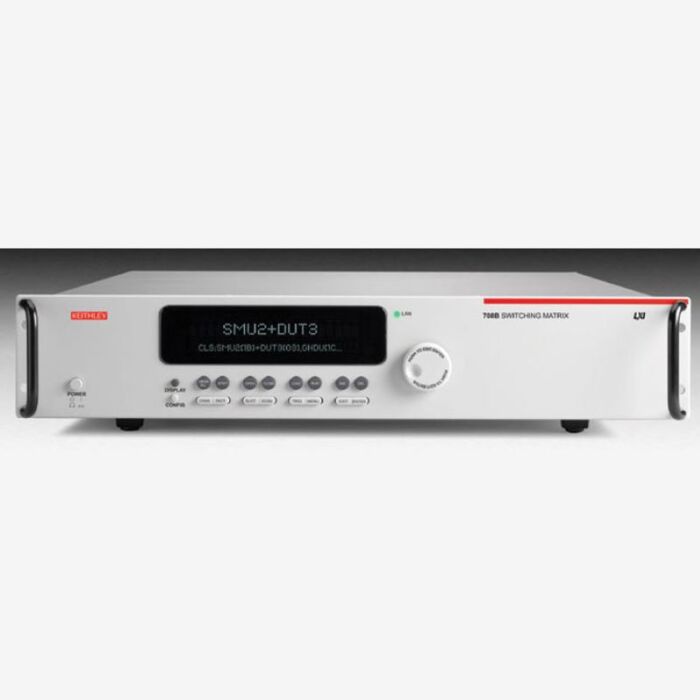

Keithley 708B 1 Slot Semiconductor Switching Mainframe

Product Highlights

• Model 708B: Single-Slot; up to 96 Crosspoints
• Significantly faster command-to-connect speeds than earlier mainframes
• Controls up to six 8x12 matrix cards
• Compatible with the most popular plug-in cards designed for the 707A/708A mainframes
• Support for both remote (via LXI, USB, and GPIB interfaces) and manual (via front panel) programming
• Integrates seamlessly with the Model 4200-SCS for semiconductor I-V and C-V characterization via GPIB interface
• Stores hundreds of switching configurations and channel patterns in non-volatile memory for reuse
• LXI Class C interface supports remote programming and control
• Embedded TSP processor and TSP-Link interface make it easy to integrate Series 2600A System SourceMeter instruments into a high speed, self-contained tester
• 14 bits of digital I/O
