UT622 series handheld LCR meters feature powerful functions, high accuracy, fast speed, and long standby time. With a clear and intuitive 2.8-inch TFT LCD display, large-capacity rechargeable battery, and up to 100kHz test frequency, the meters can be used for longstanding accurate and convenient measurement in any occasion. They are suitable for the measurement and screening of inductance, capacitance, and resistance in laboratories, production lines, maintenance points, etc.

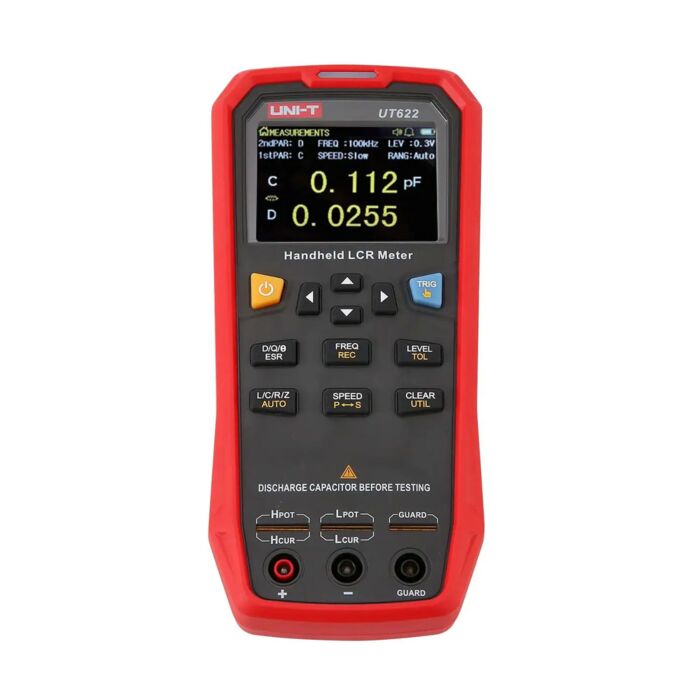

The UNI-T UT622C handheld LCR meter delivers professional-grade component testing capabilities with exceptional precision and versatility for electronics professionals and researchers. This advanced instrument combines laboratory-quality 0.1% measurement accuracy with an impressive frequency range extending to 100kHz, making it ideal for comprehensive component characterization across diverse applications. The high-performance measurement engine achieves up to 20 measurements per second, dramatically accelerating testing workflows while maintaining measurement integrity. Featuring a brilliant 2.8-inch TFT LCD display with high-brightness white backlight and powered by a robust 1800mAh lithium polymer battery providing 8 hours of continuous operation, the UT622C delivers professional measurement capabilities in a field-portable package.
- Professional Frequency Coverage - Five precise test frequencies from 100Hz to 100kHz for thorough component analysis across the frequency spectrum
- Laboratory-Grade Precision - Achieves up to 0.1% measurement accuracy for research and quality control applications
- High-Performance Testing - Maximum measurement rate of 20 tests per second for efficient batch testing and production screening
- Comprehensive Parameter Suite - Complete primary parameters (L/C/R/Z) and secondary parameters (D/Q/0/ESR) for detailed component evaluation
- Advanced Kelvin Test System - Professional four-terminal test leads (UTR-L100k-H) included for superior measurement accuracy
- Flexible Signal Levels - Three selectable test signal amplitudes (0.1Vrms, 0.3Vrms, 1Vrms) for optimal component characterization
- Stable Output Impedance - Consistent 100Ω output impedance across all frequencies ensures reliable measurements
- Intelligent Component Recognition - Auto LCR function automatically determines component type for streamlined operation
- Precision Tolerance Analysis - Adjustable tolerance range from 1% to 20% with visual LED pass/fail indication
- Versatile Circuit Modeling - Series and parallel equivalent circuit modes for accurate component representation
- Advanced Compensation - Open/short circuit clearing correction eliminates parasitic effects for maximum precision
- PC Connectivity - Standard Mini-USB interface with industry-standard SCPI command support
- Portable Professional Design - Compact 93mm x 192mm x 44mm form factor weighing just 420g
Applications
- Component Evaluation / Repair Bench
- R&D
- Production / Quality Control
- Hobbyist / Maker / Educational Applications
Each Unit Includes
- 1 - Handheld LCR Meter (UT622C)
- 1 - Four-Terminal Kelvin Test Leads Set (UTR-L100k-H)
- 1 - Short Circuit Board (UTR-001)
- 1 - USB Communication Cable
- 1 - 5V/1A Charging Adapter
- 1 - Comprehensive English Manual
