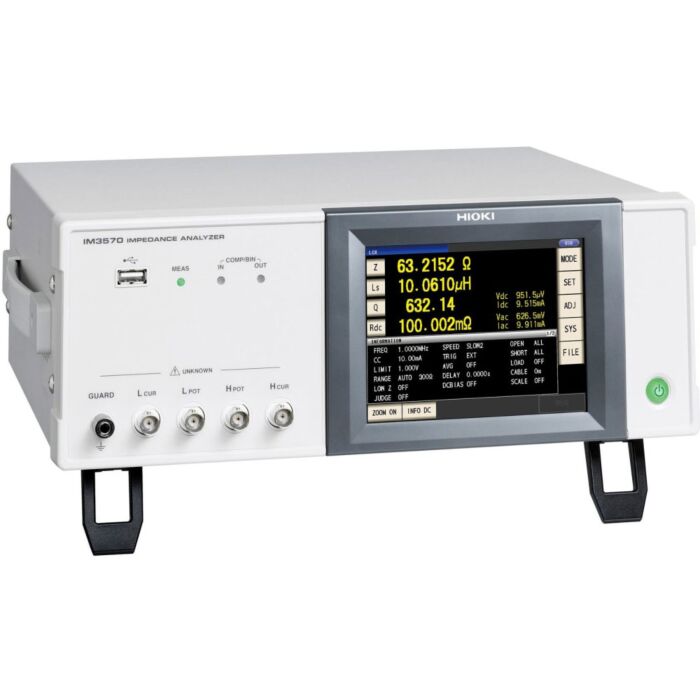

Hioki IM3570 Impedance Analyzer

Product Highlights

The Hioki IM3570 Impedance Analyzer, LCR meter and impedance analyzer is capable of measurement frequencies of 4 Hz to 5 MHz and test signal levels of 5 mV to 5 V combined into one measuring instrument. Advanced capabilities include LCR measurement with AC signals, resistance measurement with direct current (DCR), and sweep measurement which continuously changes the measurement frequency and measurement level.

The IM3570 facilitates high-speed continuous measurement under different measurement conditions and measurement modes, so inspection lines which up to now have required multiple measuring instruments can be equipped with just one device.

Features

• LCR, DCR, sweep, and continuous measurement with high-speed testing in a single unit
• Maximum test speeds of 1.5ms (1 kHz) and 0.5ms (100kHz) in LCR mode
• High basic accuracy of Z parameter: ±0.08%
• Ideal for testing the resonance characteristics of piezoelectric elements, C-D and low ESR measurement of functional polymer capacitors, DCR and L-Q measurement of inductors (coils and transformers)
• Perform frequency sweeps, level sweeps, and time interval measurements in analyzer mode
• Support for high-speed switching of measurement conditions
