Product Highlights

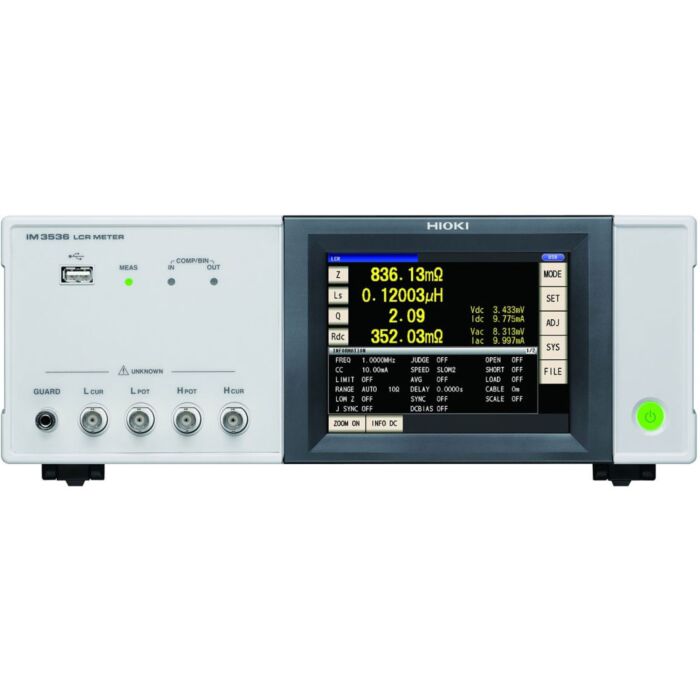

The Hioki IM3536 LCR and Impedance Analyzer raises the industry standard for general-purpose LCR meters by offering a wide DC and 4 Hz to 8 MHz testing frequency while delivering 0.05% accuracy, ideal for evaluating the characteristics of next generation electronic components, including power supply inductors thanks to the instrument's maximum measurement frequency of 8 MHz.
The IM3536 delivers a guaranteed accuracy range that starts at 1 MΩ. Furthermore, the frequency band has been expanded to 8 MHz, broadening the array of measurement targets with which it can be used.
The IM3536 features an enhanced residual charge protection function that is designed to protect the IM3536 LCR Meter's internal circuitry from a capacitor discharge voltage in the event a charged capacitor is inadvertently connected to a measurement terminal.
Features
- 4 Hz to 8 MHz measurement frequency
- Guaranteed accuracy: 1 mΩ to 200 MΩ
- Measurement time: 1 ms (0.001 sec.)
- High-precision measurement of ±0.05% rdg. (representative value)
- DC bias function: Measure under conditions simulating actual use or in accordance with industry standards
- Performs tests with multiple conditions using its continuous measurement function
- Contact check function for improved test quality
- Requires separately-purchased measurement probe or test fixture
- One-year warranty
