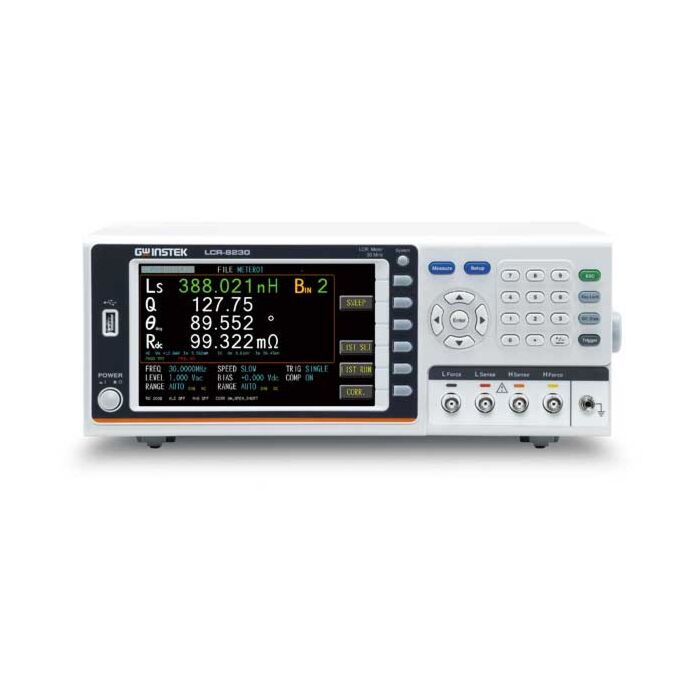

GW Instek LCR-8230A 10Hz - 30MHz High Frequency LCR Meter

The Instek LCR-8230A High Frequency LCR Meter allows for measurement results to be presented numerically or graphically according to the selected measurement mode which enables users to optimally interpret the characteristics of the DUT. This unit is suited for responding to test requirements of passive components in research and design, engineering, and production.

• Frequency Range: 10Hz - 30MHz
• Waveforms: Sine, Triangle, Square, Ramp, TTL and CMOS Output
• External Voltage Controlled Frequency (VCF) Function
• Duty Cycle Control With Signal Inversion Capability
• Variable DC Offset Control
• Two-Step (-20dBx2) and Variable Attenuator
• Built-in 6 Digit Counter With INT/EXT Function, Up To 150MHz

Each Unit Includes

• 1 - High-Precision LCR Meter (LCR-8230A)
• 1 - Test Fixture (Kelvin Clip)
• 1 - Power Cord
• 1 - User Manual CD
• 1 - Safety Instruction Sheet
