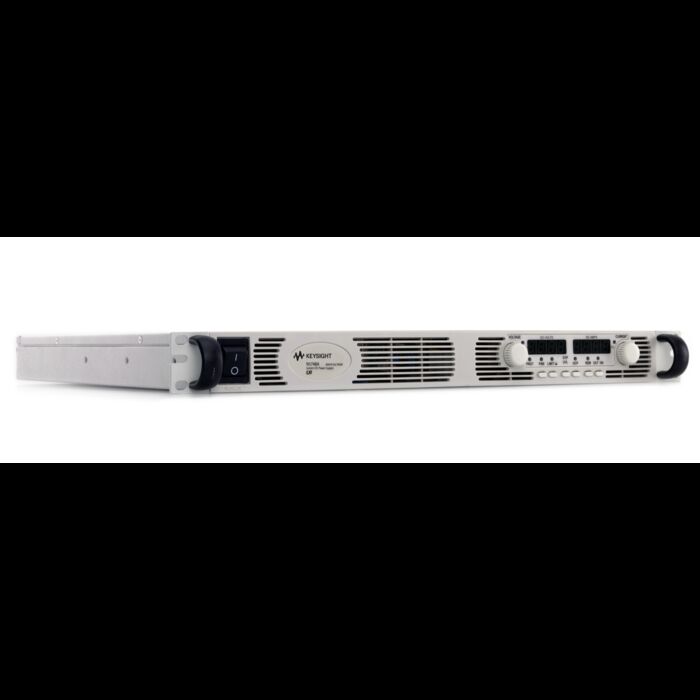

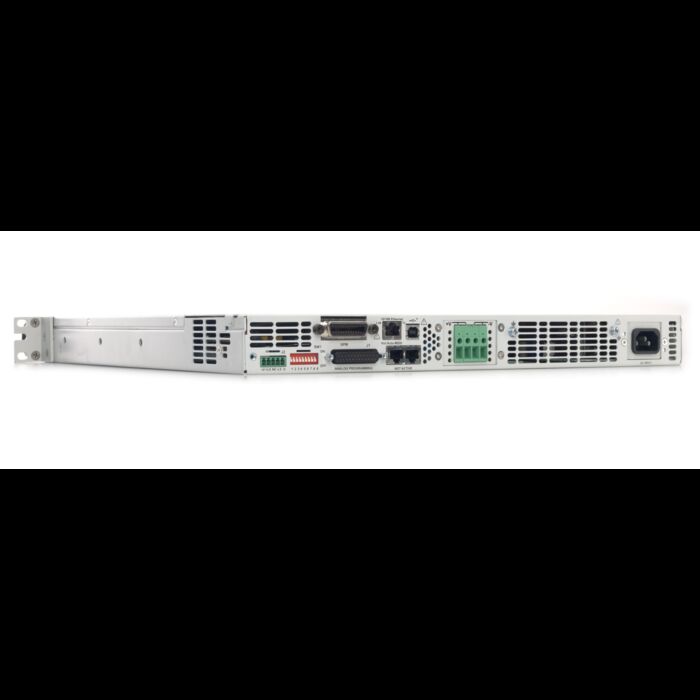

Keysight N5768A DC Power Supply, 80V, 19A, 1520W GPIB, LAN, USB, LXI

Product Highlights

• Guide to Agilent Power Supplies

  Application Notes:

  - Create Complex Sequences with a DC Power Supply

  - Improve Power Supply Performance & Safety Using Remote Sensing & Remote Inhibit

  - Achieve Cleaner Power Signals by Minimizing Common Sources of Noise

• Output Ratings
• Voltage: 40 V
• Current: 38 A
• Power: 1520 W
• Programming Accuracy
• Voltage 0.05%+ 20 mV
• Current 0.1%+ 38 mA
• Ripple & Noise
• CV p-p: 60 mV
• CV rms: 8 mV
• CC rms: 98 mA
• Load Regulation
• Load Effect (change from 10% to 90%) Voltage: 6 mV
• Load Effect (change from 10% to 90%) Current: 12.6 mA
• Load Transient Recovery Time: ≤1 ms
• Includes BV0003B Power Supply app
