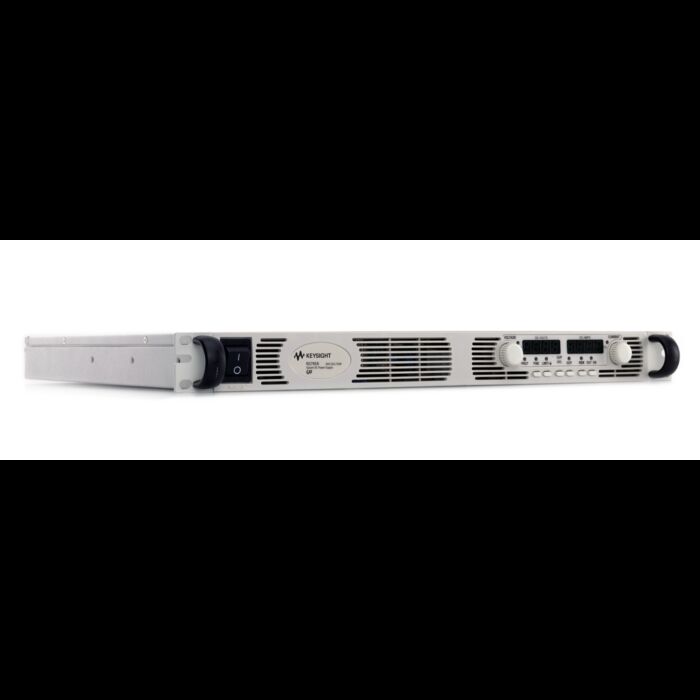

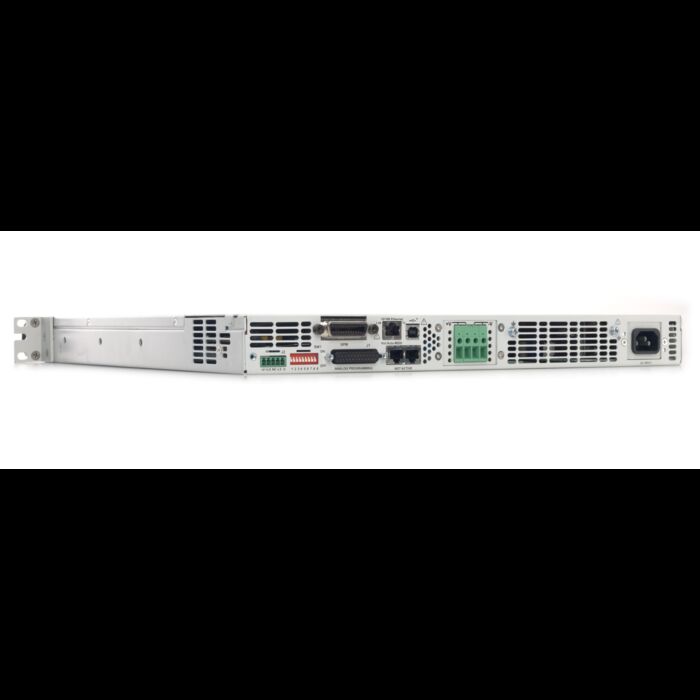

Keysight N5765A DC Power Supply, 30V, 50A, 1500W GPIB, LAN, USB, LXI
DC Power Supply,30V,50A,1500W GPIB,LAN,USB,LXI
Order #: N5765A
Mfg #: N5765A
$4,373.00
Keysight N5765A DC Power Supply, 30V, 50A, 1500W GPIB, LAN, USB, LXI
DC Power Supply,30V,50A,1500W GPIB,LAN,USB,LXI
Order #: N5765A
Mfg #: N5765A
$4,373.00
Availability: Ships in 4-6 weeks
This item is available USED at
$4,195.00
Shop now
Product Highlights
Guide to Agilent Power Supplies
Application Notes:
- Create Complex Sequences with a DC Power Supply
- Improve Power Supply Performance & Safety Using Remote Sensing & Remote Inhibit
- Achieve Cleaner Power Signals by Minimizing Common Sources of Noise
- Output Ratings
- Voltage: 30 V
- Current: 50 A
- Power: 1500 W
- Programming Accuracy
- Voltage 0.05%+ 15 mV
- Current 0.1%+ 50 mA
- Ripple & Noise
- CV p-p: 60 mV
- CV rms: 8 mV
- CC rms: 125 mA
- Load Regulation
- Load Effect (change from 10% to 90%) Voltage: 5 mV
- Load Effect (change from 10% to 90%) Current: 15 mA
- Load Transient Recovery Time: ≤1 ms
- Includes BV0003B Power Supply app
All products in this series
