The UTG4000A Series waveform generators with multi-function design is ideal for various application scenarios. Featuring with the Function Generation, Arbitrary Waveform Generation, Pulse Generation, Harmonic Generation, Analog/Digital Modulation source, and cymometer, the UTG4000A series can handle a broad array of signal emulation applications from near DC up to 80MHz or even 200 MHz depending on model and function. The UTG4000A utilizes Direct Digital Synthesizer (DDS) technology delivers stable, precise, low distortion signals. The sleek, upright design features a high resolution 8 inch display screen, while the user-friendly interface design and panel layout improves efficiency.

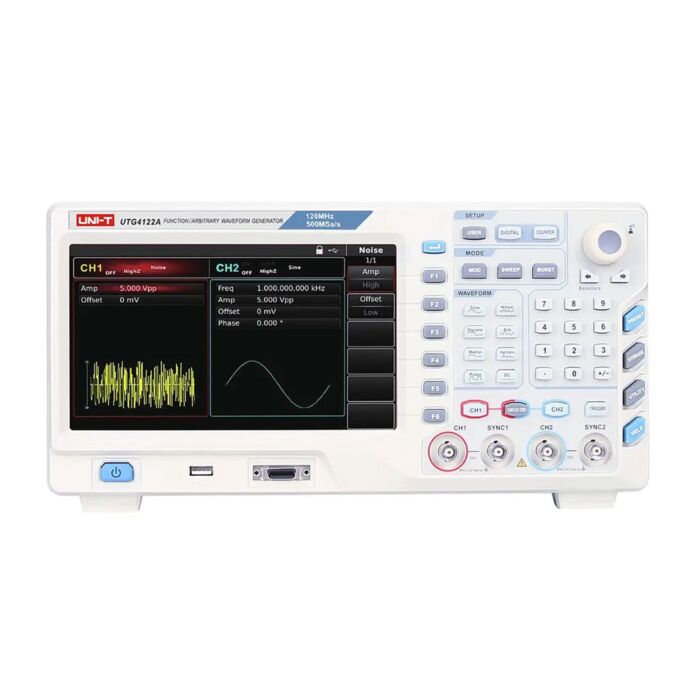

The UTG4122A waveform generator with multi-function design is ideal for various application scenarios. Featuring Function Generation, Arbitrary Waveform Generation, Pulse Generation, Harmonic Generation, Analog/Digital Modulation source, and cymometer, the UTG4122A can handle a broad array of signal emulation applications from near DC up to 120MHz. The UTG4122A utilizes Direct Digital Synthesizer (DDS) technology delivers stable, precise, low distortion signals. The sleek, upright design features a high resolution 8 inch display screen, while the user-friendly interface design and panel layout improves efficiency.
- Frequency Output: 120MHz
- Channels: 2
- Frequency Resolution: 1 µHz
- Sample Rate: 500 MSa/s
- Vertical Resolution: 16 bits
- Arbitrary Wavelength: 32Mpts
- Versatile modulation options: AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, OSK, PWM, SUM, QAM
- Highly accurate and stable DDS (direct digital synthesizer) signal generation
- 6-bit Frequency Counter, measuring from 100mHz-200MHz
- Interface: USB Device/Host, LAN, 10MHz In/Out, Trigger, Modulation In, Counter
- Display: 8in TFT LCD screen
- Certifications: cETLus, CE, ROHS, UKCA
Applications
- Electronic Circuit Design & Testing
- Communications Systems
- Education / Research Labs
- Service / Repair / Diagnostics
- Audio, Acoustics, Sensor Simulation
- Embedded System Development
Each Unit Includes
- 1 - 120MHz, 2-Channel Performance-Series Arbitrary Waveform Generator (UTG4122A)
- 2 - BNC Straight Line
- 1 - Power Cord
- 1 - USB2.0 Printing Cable
