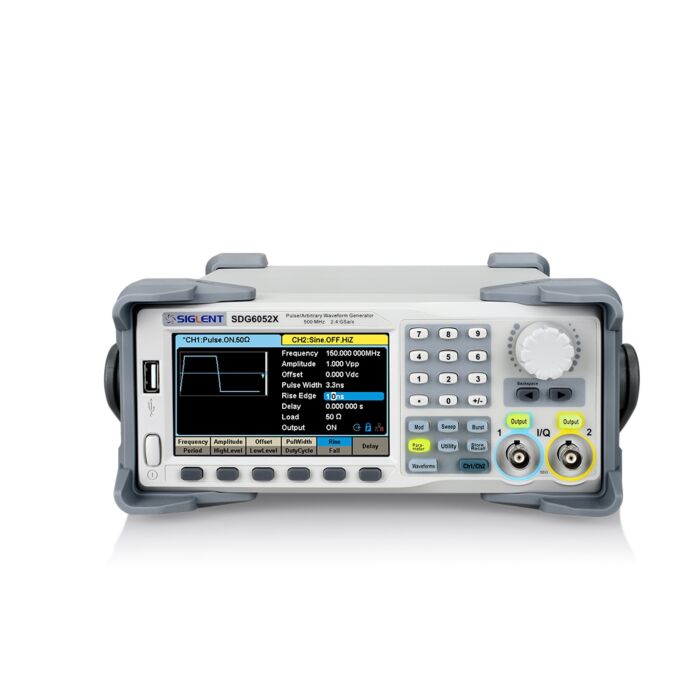

Siglent SDG6022X

Product Highlights

SIGLENT's SDG6000X is a series of dual-channel Pulse/ Arbitrary Waveform Generators that feature up to 500 MHz bandwidth, a maximum sample rate of 2.4 GSa/s and 16-bit vertical resolution. They also include proprietary TrueArb & EasyPulse technology that help to solve the weaknesses inherent in traditional DDS generators when generating arbitrary, square and pulse waveforms. In addition, the SDG6000X is a multi-function device which can generate Noise, IQ signals and PRBS patterns. These features enable the SDG6000X to provide a variety of high fidelity and low jitter signals, meeting the growing requirements of complex and intensive applications.

• 200 MHz
• 2 channels
• Arb-Waveform length: 2~20 Mpts; function/arbitrary waveform output; EasyPulse and TrueArb technology
• Modulation function (AM,DSB-AM, FM, PM, ASK, FSK, PWM,Sweep,Burst); frequency counter function, PRBS generator
• Pseudo Random Bit Sequence (PRBS) Sequence
• Optional for I/Q Modulation
• 2.4 GHz Sample Rate
• Pulses with as low as 1 nsec rise/fall time and 3.3 nsec pulse width
• 16 Bit Vertical Resolution
• All the features of the SDG2000X family
• Comes with Easy-I/Q Software
