RIGOL DG2102

100MHz Function Generator,2-Ch. 250MSa/sec, 16Bit Res,16M Mem

Order #: DG2102

Mfg #: DG2102

Questions about availability or need help? Contact Us:

(800) 633-0561
$999.00

RIGOL DG2102

100MHz Function Generator,2-Ch. 250MSa/sec, 16Bit Res,16M Mem

Order #: DG2102

Mfg #: DG2102

$999.00
Availability: Ships in 2-3 weeks
Available Promotions

Only need this item for a short time? Learn about rentals

Questions about this product? Speak to an expert

Product Highlights

Engineers who require high signal fidelity in a reliable and capable waveform generation need look no further than the DG2000 Series generators. With frequencies up to 100 MHz, 16Bit Resolution, and arbitrary waveforms of up to 16 Mpts the DG2000 reproduces any waveform with high signal fidelity. SiFi II adds additional filtering capabilities making this one of the most flexible generators on the market. The hybrid touch interface and industrial design make it the perfect choice for your lab while standard Ethernet and USB make it the choice for engineers who need to programmatically control their instrument.

The Rigol DG2000 is a two channel, arbitrary waveform generator built upon Rigol’s SiFi II technology. Available with a 50, 70 or 100 MHz bandwidth, the DG2000 features a per channel memory depth of 16 Mpts, with dual channel performance equivalent to two independent signal sources. Sample rates are up to 250 MSa/s with 16 bit vertical resolution.

The DG2000 contains 160 built in arbitrary waveforms, covering common signals found in engineering, medical, automotive and mathematic applications, and can be generated through an editing function, as well as PC software. The SiFi II architecture generates arbitrary waveforms point by point - the signal is recovered without distortion, sample rates are accurate and adjustable, and jitter of all output waveforms is as low as 200 ps.

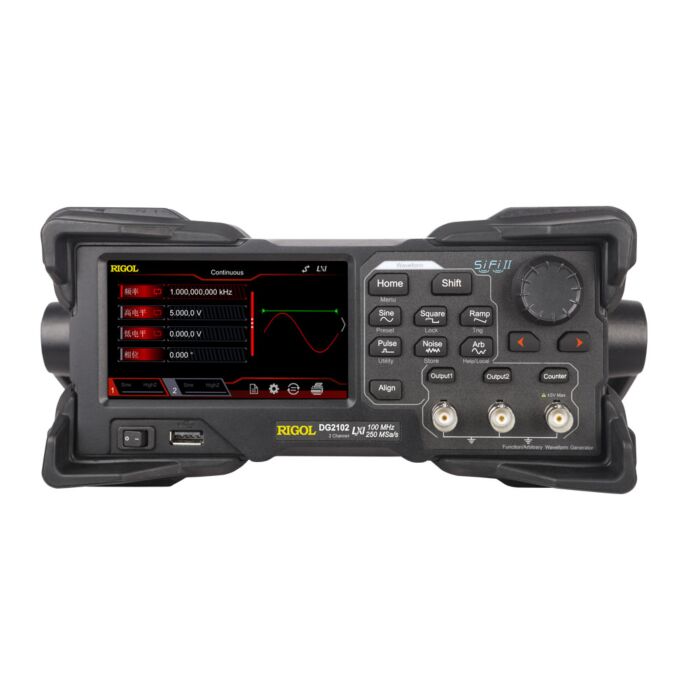

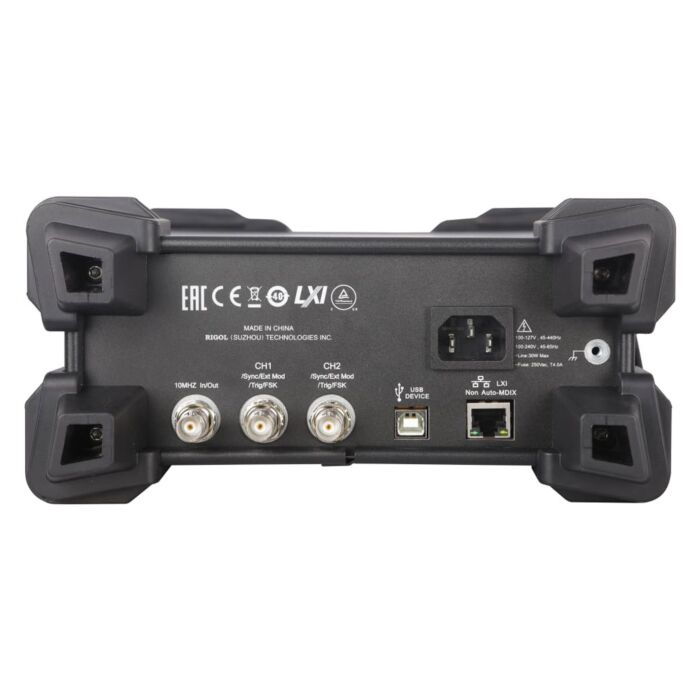

The DG2000 builds upon the architecture of the previous DG900 series, adding features such as rack mount capability and greater network connectivity. It has the same core functional capabilities of the DG900, but with a more traditional user control system and rugged industrial housing. It contains a 4.3" TFT color touch screen, as well as several standard interfaces, includes USB host and device, and LAN.

  • Function / arbitrary waveform generator
  • Two channels / 100 MHz bandwidth
  • SiFi II 16Bit Resolution with 250MSa/s sampling for increased signal fidelity
  • Advanced generation capabilities like Dual-Tone, Harmonics, and Sequencing
  • Communication traffic generation with integrated PRBS and RS232 patterns
  • Analog and digital modulations
  • 160 built in waveforms
  • A next Gen Touch UI combined with traditional button functions
  • 16Mpt deep memory for long complex arbitrary waves
  • Integrated LAN connectivity
  • Rack-mountable and rugged industrial mechanical design

Special Member Pricing
Buy with Calibration
Rental Instruments
Access to 100,000+ products
1,000's of instruments in stock
Product selection expertise
Application assistance
Purchase with a PO

ModelDG2102
Channel 2
Max. Frequency 100 MHz
Sample Rate 250 MSa/s
Waveform
Basic Waveforms Sine, Square, Ramp, Pulse, Noise, DC, Dual-tone
Advanced Waveforms PRBS, RS232, Sequence
Built-in Arbitrary Waveforms 160 types of waveforms, including Sinc, Exponential Rise, Exponential Fall, ECG, Gauss, HaverSine, Lorentz, etc.
Frequency Characteristics
Sine 1 µHz to 100 MHz
Square 1 µHz to 25 MHz
Ramp 1 µHz to 2 MHz
Pulse 1 µHz to 25 MHz
Harmonic 1 µHz to 25 MHz
PRBS 2 kbps to 60 Mbps
Dual-tone 1 µHz to 20 MHz
RS232 baud rate range: 9600, 14400, 19200, 38400, 57600, 115200, 128000, 230400
Sequence 2 k to 60 MSa/s
Noise (-3 dB) 100 MHz bandwidth
Arbitrary Waveform 1 µHz to 20 MHz
Resolution 1 µHz
Accuracy ±(1 ppm of the setting value + 10 pHz), 18°C to 28°C
