BK Precision 4014B

Product Highlights

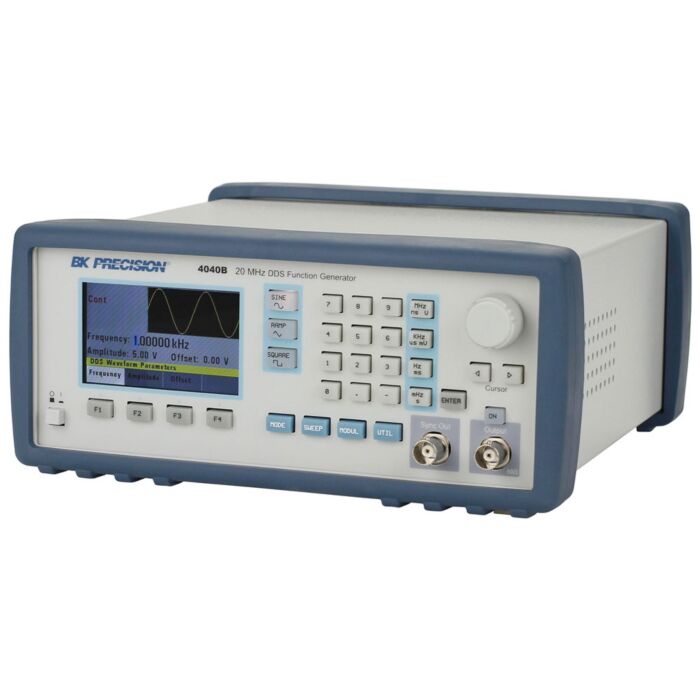

Models 4014B and 4040B are versatile sweep function generators, designed with a dual technology architecture combining direct digital synthesis (DDS) and a low-jitter square wave generator. These instruments generate sine, square, and triangle waveforms with high signal precision and stability. Both models provide variable output voltages from 0 to 10 Vpp into 50 ohms (up to 20 Vpp into open circuit), linear and logarithmic sweep, AM/FM modulation, and a continuously variable DC offset to inject signals directly into circuits at the correct bias level.

• Sine, square, and triangle/ramp waveform generation
• Bright color LCD display with waveform preview
• Linear and logarithmic sweep
• AM/FM modulation
• Adjustable duty cycle
• Independent DC offset amplifier design allows large offsets on small amplitude (e.g. 10 mV) waveforms
• Store and recall instrument settings
• Output On/Off button
• Internal/external triggering
• Gate and burst mode (4040B only)
• Built-in counter
• USB interface with SCPI-compliant command set
• Short circuit and overvoltage protection on all inputs and outputs

Each Unit Includes

• Instruction manual on CD
• power cord
• USB (type A to B)
• interface cable
• certificate of calibration
