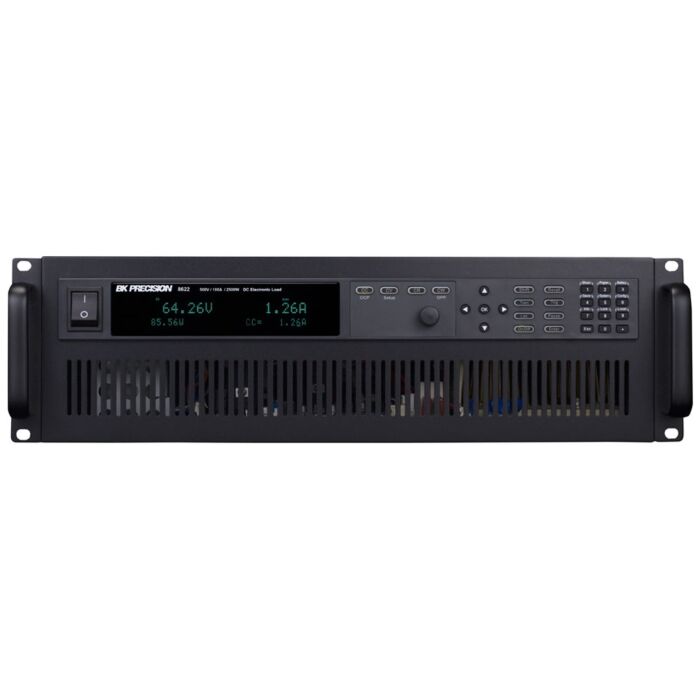

BK Precision 8622
Programmable DC Electronic Load 2500W, 500V, 100A / 3U

Order #: 8622

Mfg #: 8622

Questions about availability or need help? Contact Us:

(800) 633-0561
$10,950.00

BK Precision 8622

Programmable DC Electronic Load 2500W, 500V, 100A / 3U

Order #: 8622

Mfg #: 8622

$10,950.00
Availability: Ships in 3-4 weeks

Product Highlights

  • Voltage range up to 500 V
  • Current range up to 100 A
  • CC/CV/CR/CW operating modes
  • 16-bit voltage and current measurement system providing 1 mV / 0.1 mA resolution
  • Transient mode up to 25 kHz in CC mode
  • List mode function
  • Store and recall up to 100 setups
  • Adjustable slew rate in CC mode
  • Flexible triggering options via front panel, external input, timer, or bus
  • Built-in battery test function with voltage level, capacity level, and timer stop conditions
  • Test modes to validate the OCP/OPP protection functions of a power supply
  • CR-LED mode to simulate the loading behavior of typical LEDs
  • Remote sense
  • Analog current control and monitoring
  • Thermostatically controlled fan
  • Standard USB (USBTMC-compliant), RS232, and GPIB interfaces supporting SCPI commands for remote control
  • OVP/OCP/OPP/OTP including local and remote reverse voltage (LRV/RRV) protection

Special Applications

The 8600 Series provides a built-in battery test mode to measure the ampere-hour (Ah) characteristic of a battery and a unique CR-LED mode to simulate the loading behavior of a typical LED.
