Solar Tools Kit with 1537 Insulation Resistance Tester and TLPV1 Test Leads. This kit brings together the Fluke 1537 insulation tester and TLPV1 MC4 test leads, offering advanced insulation testing capabilities with robust, high-voltage test leads. It's designed for those who need to verify insulation integrity in utility-scale solar arrays, EVSE, and other high-voltage applications, supporting preventive maintenance and compliance.
The 1537 2,500 V Insulation Resistance Testers are engineered to simplify frontline troubleshooting whether you're on the factory floor or working in the field at a solar installation. With user selectable test voltages from 250 V to 2,500 V and resistance measurements up to 500 GΩ these testers allow you to cover more workload with a single tool. Equipped with an intuitive user interface, a short circuit current of up to 5 mA and a CAT IV 600 V rating these portable high-voltage insulation testers can deliver rapid and stable resistance measurements no matter where you take them. The 1537 also allows you to store measurements for later review or PC transfer, using the provided software.
The TLPV1 MC4 to 4mm Test Lead Set provides essential tools for accurate and safe measurements in solar photovoltaic (PV) systems. Designed with black and red MC4 to 4mm banana plug test leads, this set ensures reliable connectivity and performance in various solar applications.
- Tests insulation up to 2,500 V for solar and EV systems
- Measures resistance up to 500 GΩ for high-voltage checks
- Includes MC4 leads for safe PV connections
- Stores and transfers test data for reporting
- Ideal for preventive maintenance and compliance
Applications
- Factory Floors
- Field/Solar Installations
- Motor/Transformer/Cable Integrity
- Utility-Scale Systems

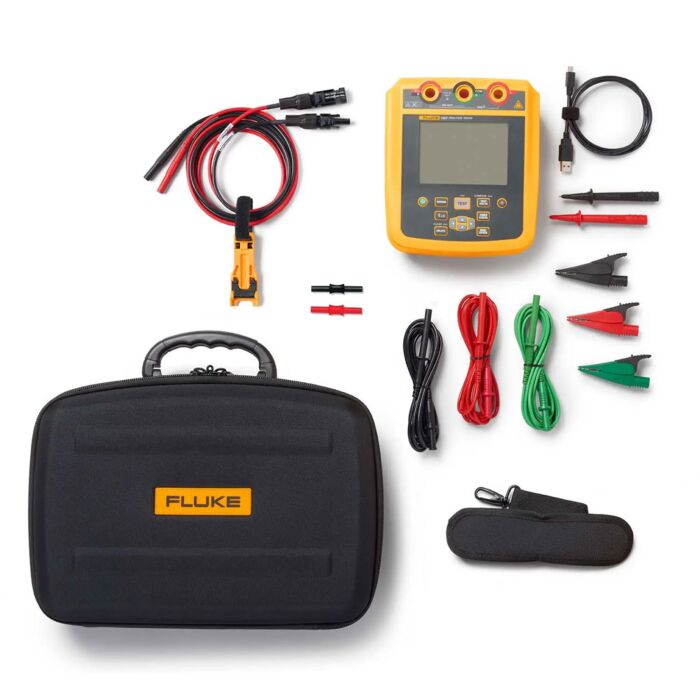

Each Unit Includes
- 1 - Insulation Resistance Tester (1537)
- 1 - Test Lead Set with Alligator Clips, Red/Black/Green
- 1 - Probe Set, Red/Black
- 1 - Soft Carrying Case
- 1 - USB cable
- 1 - PC Software
- 1 - MC4 to 4 mm Test Lead Set, Red/Black, CAT III 1500V, 30A (TLPV1)
- 1 - Solar PV Connector Unlocking Tool (TLPV-UTOOL)
