Hioki DT4224

Digital MultiMeter

Order #: DT4224

Mfg #: DT4224

Questions about availability or need help? Contact Us:

(800) 633-0561
$151.00

Hioki DT4224

Digital MultiMeter

Order #: DT4224

Mfg #: DT4224

$151.00

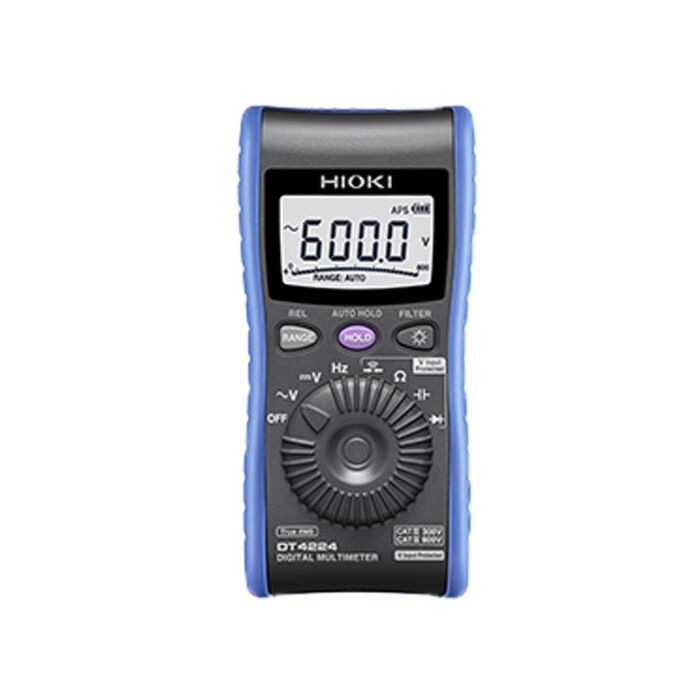

The Hioki DT4224 is a pocket-sized digital multimeter featuring an innovating circuit-breaker false trip prevention function to enhance testing safety, capacitance and diode testing functions, ideal for all general electrical jobs.
Availability: Ships in 2-3 weeks
Available Promotions
This product is available for shipping to the United States and Puerto Rico only.
This product is available for shipping to the United States and Puerto Rico only.
This product is available for shipping to the United States and Puerto Rico only.

Only need this item for a short time? Learn about rentals

Questions about this product? Speak to an expert

Product Highlights

  • Achieving a high level of safety in a compact body and lightweight design
  • Circuit breaker false trip prevention function helps avoid accidents resulting from breakers that mistakenly trip due to incorrect input
  • More convenient function: Resistance, Capacitance measurement and diode testing
  • Robust design capable of withstanding a drop from a height of 1 m
  • Test leads conveniently wrap around the back
  • ±0.5% DC V basic accuracy, wide 40 Hz to 1 kHz AC V frequency characteristics
  • Low-pass filter cuts high harmonics (when measuring inverter fundamental waveforms)
  • Broad -10 (14°F) to 65°C (149°F) operating temperature range
  • Display backlight CAT IV 300 V, CAT III 600 V

Each Unit Includes

  • Test Lead
  • Holster
  • Instruction Manual
  • Alkaline Battery

Special Member Pricing
Buy with Calibration
Rental Instruments
Access to 100,000+ products
1,000's of instruments in stock
Product selection expertise
Application assistance
Purchase with a PO

DC Voltage 600.0 mV to 600.0 V, 4 ranges, Basic accuracy: ±0.5 % rdg. ±5 dgt.
AC Voltage 6.000 V to 600.0 V, 3 ranges, Frequency characteristics: 40 Hz - 1 kHz
Basic accuracy 40 - 500 Hz : ±1.0 % rdg. ±3 dgt. (True RMS, crest factor 3)
Resistance 600.0 Ω to 60.00 MΩ, 6 ranges
Basic accuracy: ±0.9 % rdg. ±5 dgt.
C (capacitance) 1.000 μF to 10.00 mF, 5 ranges,
Basic accuracy: ±1.9 % rdg. ±5 dgt.
Frequency AC V measurement: 99.99 Hz (5 Hz or more) to 9.999 kHz, 3 ranges
Basic accuracy: ±0.1 % rdg. ±2 dgt.
Continuity check Continuity threshold [ON]: 25 Ω or less (buzzer sound), [OFF]: 245 Ω or more Response time: 0.5 ms or more
Diode test Open terminal voltage: 2.5 V or less, Testing current 0.5 mA or less,
Threshold of forward voltage: 0.15 V to 1.5 V
Voltage detection N/A
Other functions Circuit breaker false trip prevention function, Filter function, Display value hold, Relative display, Auto-power save
Display Main and Sub displays: 4-digits LCD, max. 6000 digits, bar graph
Display refresh rates 5 times/s (Capacitance measurement: 0.05 to 5 times/s, depending on measured value, Frequency: 1 to 2 time/s )
Power supply LR03 alkaline batteries ×4, Continuous use: 35 hours (backlight OFF)
Dimensions and mass 72 mm (2.83 in)W × 149 mm (5.87 in)H× 38 mm (1.50 in)D,190 g (6.7 oz) (including batteries and holster)
Accessories Test lead DT4911 ×1, Holster ×1, Instruction manual ×1, LR03 alkaline battery ×1
