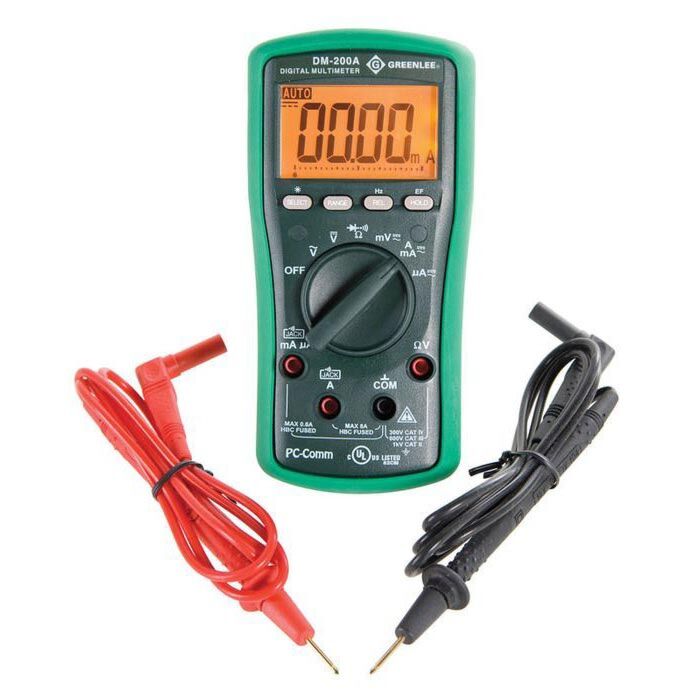

Greenlee DM-200

Order # DM-200 | Mfg # DM-200A
$123.65
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

Overview

Product Highlights

  • Measures voltage, current, resistance and frequency
  • Tests continuity and diodes
  • Backlit LCD with 6,000 count display
  • Two voltage detection modes - non-contact or using a single test lead
  • BeepJack warns when test leads are incorrectly inserted in current measurement terminals
  • Automatic and manual range selection
  • Relative offset mode to see changes in measurements
  • Data hold
  • Use optional USB / RS-232 interface DMSC-2U for direct-to-PC logging
  • Lifetime Limited Warranty
  • Accessories included: (2)1.5V AAA batteries, bead temperature probe (DM-210A, DM-510A only, 400°F/204°C max), test leads, protective boot

Each Unit Includes

  • (2) 1.5V AAA Batteries
  • Test leads
  • Protective Boot

Specifications

  • Amperage Measurement : 600, 6000μA; 60, 600mA; 6, 8A
  • Battery : (2) 1.5 V AAA
  • Capacitance : 60, 600 nF; 6, 60, 600, 3000μF
  • Display : Backlit LCD With 6,000 Count
  • Frequency Measurement : 10Hz - 50kHz Sine Wave, 5Hz - 999.9kHz Logic Level Square Wave
  • Measurement Category : CAT IV 300 V, CAT III 600 V, CAT II 1000 V
  • Replacement Part : TSG-3 Sure-Grip Test Leads
  • Resistance Measurement : 600 Ω; 6, 60, 600 kΩ; 6, 60 MΩ
  • Standard : CAT IV, CAT II, C/UL US Listed, CAT III, CE Listed
  • Sub Brand : ESM
  • Temperature Rating : K Type, -58 To 1832°F (-50 To 1000°C)
  • Type : Digital
  • Voltage Measurement : 60, 600 mV; 6, 60, 600, 1000V
