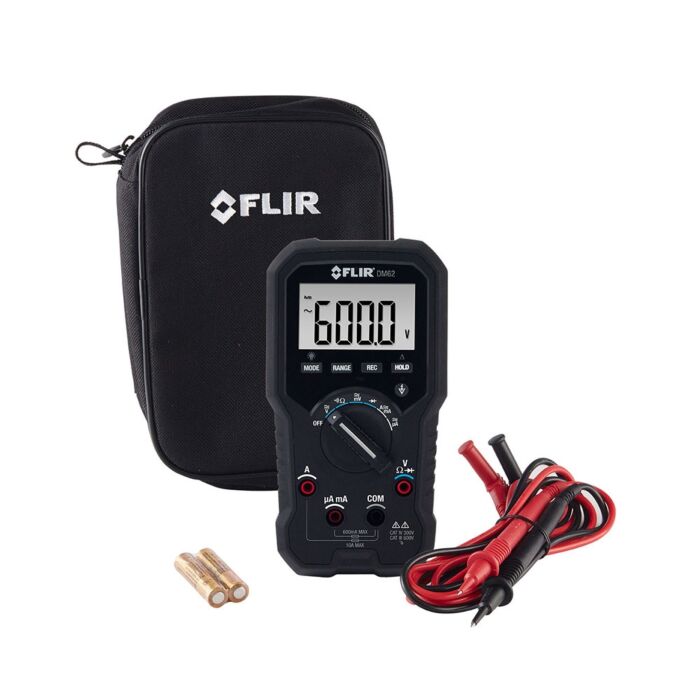

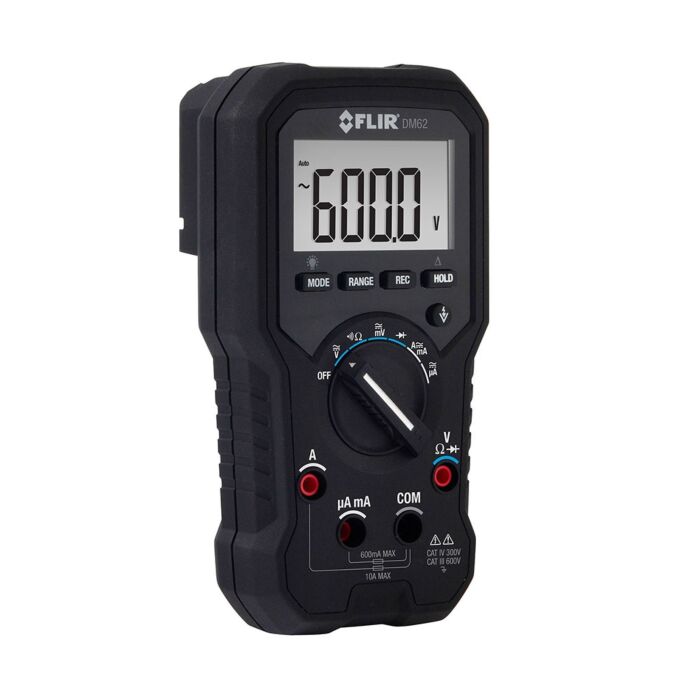

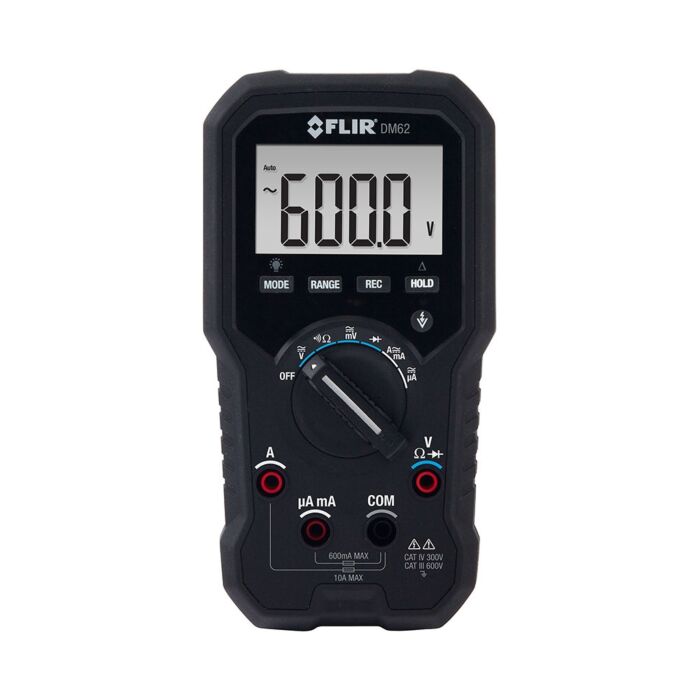

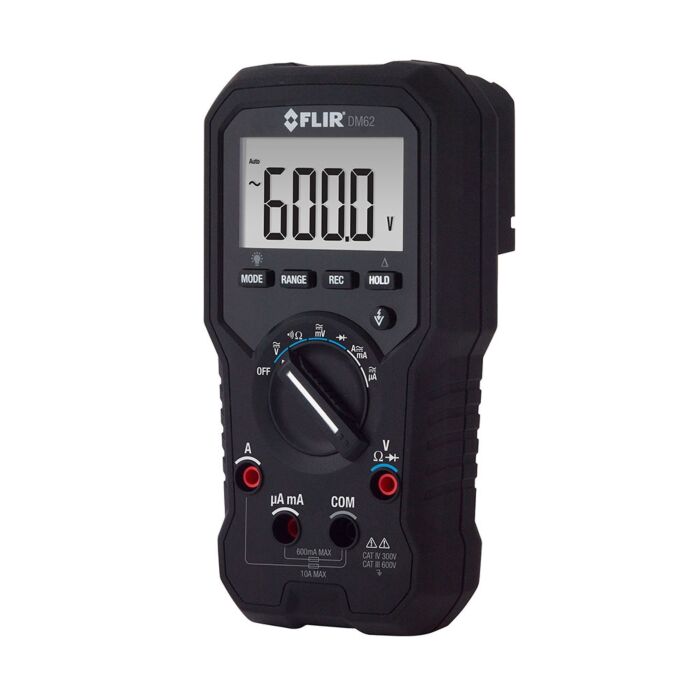

FLIR DM62 TRMS Digital Multimeter with non-Contact Voltage

Order # DM62 | Mfg # DM62
$95.99
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

Overview

Product Highlights

The DM62 has essential measurement features including True RMS AC/DC voltage and current, non-contact voltage detection, VFD mode, and extended voltage measurement range up to 600 V. Whether you're a commercial electrician, electronics technician, or just need the right tool for DIY, the DM62 provides precise measurements and quality construction for everyday use.

  • Auto Power Off: Yes
  • Warranty: Limited lifetime warranty
  • Drop test: 2 m
  • IP Rating: IP40
  • Diode Test: Range: 3.000 V Basic Accuracy: ±0.9%
  • Frequency Range: Range: 99.99 kHz Basic Accuracy: ±1.0%
  • Resistance: Range: Basic Accuracy: 600.0 kΩ ±0.5% 6.00 MΩ ±0.3% 60.00 MΩ ±0.9%
  • Thermocouple: –40 to 752.0°F DMM ± (1.0% + 3°F), –40 to 400°C DMM ± (1.0% + 1.5°C)
  • VFD AC Voltage: Range: 600.0 V RMS Basic Accuracy: ±1.0%
  • Continuity check: Between 30 Ω and 480 Ω
  • AC/DC mAmps: Range: 600.0 mA Basic Accuracy: ±1.0% / ±0.7%
  • AC/DC microAmps: Range: 6000 µA Basic Accuracy: ±1.5% / ±1.0%
  • AC/DC mVolt: Range: 600.0 mV Basic Accuracy: ±1% / ±0.4%
  • AC/DC Voltage: Range: 600.0 V Basic Accuracy: ±1.0% / ±0.4%
  • AC/DC Amps: Range: 10.00 A Basic Accuracy: ±1.5% / ±1.0%
