Keithley DMM7512
7.5 Digit Sampling Multimeter, 2-Channel

Order #: DMM7512

Mfg #: DMM7512

Questions about availability or need help? Contact Us:

(800) 633-0561
$9,120.00

Keithley DMM7512

7.5 Digit Sampling Multimeter, 2-Channel

Order #: DMM7512

Mfg #: DMM7512

$9,120.00
Availability: Ships in 3-4 weeks
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.

Product Highlights

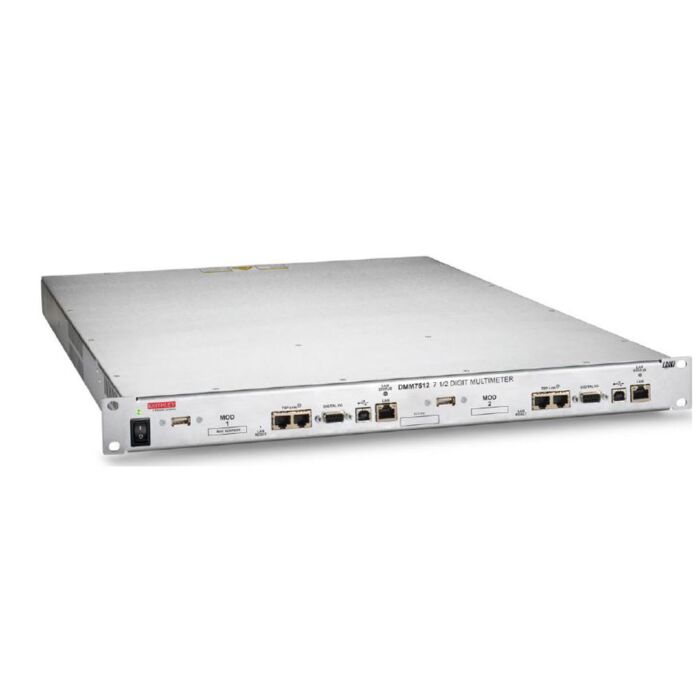

The DMM7512 combines two full-function, high accuracy, high sampling speed DMMs into a 1U high, full rack wide form factor chassis. The compact chassis saves rack space in high-instrument density test systems without compromising measurement performance. Each DMM has identical functionality, and they are entirely independent of each other.

Two exact DMM7510s built into one compact enclosure

  • Sample complex waveforms with the 1Msample/s, 18-bit digitizer; store up to 27.5 million readings
  • Test components used in low power circuits with 0.1µΩ and 1 pA sensitivities
  • Maximize test quality with high test uncertainty ratios using 1-year accuracy DC volts as good as 14 ppm
  • Built-in Test Script Processor (TSP) enables test sequence execution without controller interaction, reducing test time and communication overhead, while availing the controller for other tasks

Double Test System Density

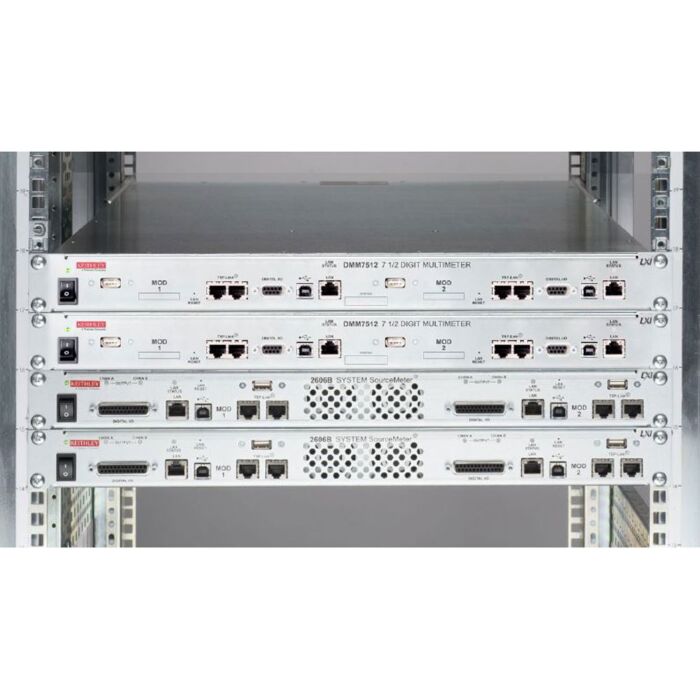

  • Combine sourcing and measurement with the 2606B High Density, 4-channel Source Measure Unit (SMU) and the DMM7512 for four channels of sourcing and two channels of measurement in as little as 2U of rack space
  • No extra spacing for thermal management is required between either DMM7512s or 2606Bs

Significantly Reduce Test Time

  • Control up to 32 instruments in a TSP-Link test system
  • Synchronize measurements with a latency under 500 ns
  • Eliminate time-consuming communications between the instruments and a PC
  • DMM7512 TSP code is compatible with DMM7510 TSP code

Determine Power Consumption

  • Capture current and voltage waveforms with up to 1 Msample/s, 18-bit digitizing
  • Synchronize waveform capture using TSP-Link with less than 500 ns latency between initiation of waveform sampling
  • Measure low sleep mode current with 1pA DCI sensitivity or 0.1nA current digitization sensitivity

Increase throughput with multidevice testing

  • 1U rack height with no spacing between instruments required
  • Two DMMs per instrument
  • Control multiple instruments with a test script and TSP-Link to reduce bus communication time and save test time
