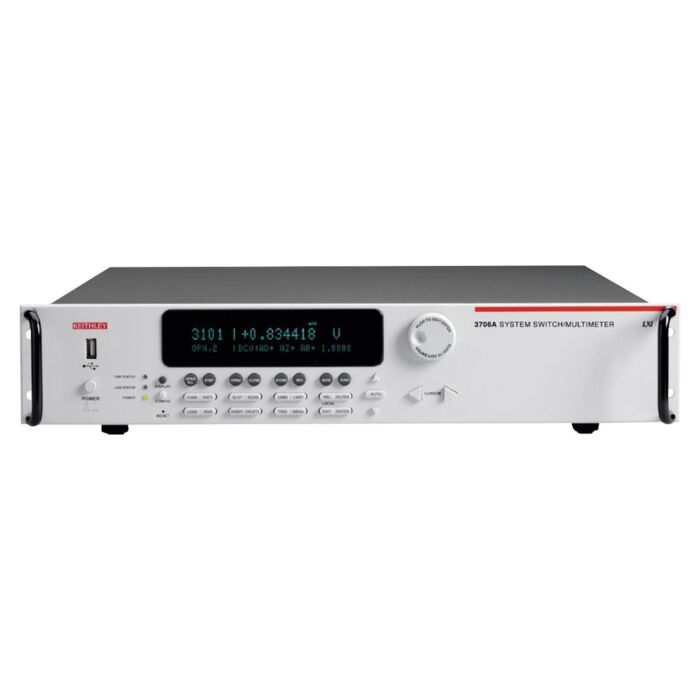

Keithley 3706A System Switch/Multimeter

Order # 3706A | Mfg # 3706A

$5,800.00

Call for availability

Ships Free Over $100

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

Product Highlights

To provide users with greater versatility when designing test systems, the Series 3700A mainframes are equipped mwith many standard features. For example, easy connectivity is supported with three remote interfaces: LXI/Ethernet, General Purpose Interface Bus (GPIB), and Universal Serial Bus (USB). Fourteen digital I/O lines are also included, which are programmable and can be used to control external devices such as component handlers or other instruments. Additionally, system control can be greatly enhanced by using our Test Script Processor (TSP) technology. This technology provides “smart” instruments with the ability to perform distributed processing and control at the instrument level versus a central PC.

Six-slot system switch mainframe with optional high performance multimeter
Multi-processor architecture optimized for high throughput scanning and pattern switching applications
Remote PC control via Ethernet, USB, and GPIB interfaces
Up to 576 two-wire or 720 one-wire multiplexer channels in one mainframe
Up to 2,688 one-pole matrix crosspoints in one mainframe
Embedded Test Script Processor (TSP) offering unparalleled system automation, throughput, and flexibility
TSP-Link Technology master/slave connection provides easy system expansion and seamless connection to Series 2600 and 2600B SourceMeter SMU instruments
Capable of over 14,000 readings per second to memory with optional high performance multimeter
LXI interface with embedded Web browser interface for test setup, maintenance, and basic application control

Each Unit Includes

Test Script Builder Software Suite CD
Ethernet Crossover Cable (CA-180-3A)
Series 3700A Product CD (includes LabVIEW®, IVI C, and IVI.COM drivers)

Technical Resources

Keithley 3700A Series Datasheet
Keithley 3700A Series User Manual

Specifications

Features	Benefits
Four configuration options available	Allows buying the minimum functionality the application requires: with or without DMM, with or without front panel display and keypad.
Embedded Test Script Processor (TSP®)	Avoids communication delays between the PC controller and instrument by embedding test scripts in the instrument itself, improving test throughput dramatically.
TSP-Link® master/slave connection	Offers easy system expansion between mainframes; also allows connecting to other TSP-Link enabled instruments such as Series 2600B SourceMeter SMU instruments.
Optional 7½-digit DMM is connected to the mainframe’s analog backplane	Ensures a high quality signal path from each card channel to the multimeter.
Built-in Web interface	Offers a quick and easy method to control and analyze measurement results.
Optional DMM capable of >14,000 readings/second to memory at 3½ digits	Supports high throughput component testing.
Front panel USB 2.0 device port	Simplifies transfer of readings, system configurations, and test scripts by allowing them to be saved to memory sticks.
Built-in LXI/Ethernet, GPIB, and USB interfaces	Supports easy connectivity with other equipment in the test system.
Fourteen programmable digital I/O lines	Allows easy control of external devices like component handlers or other instruments.
