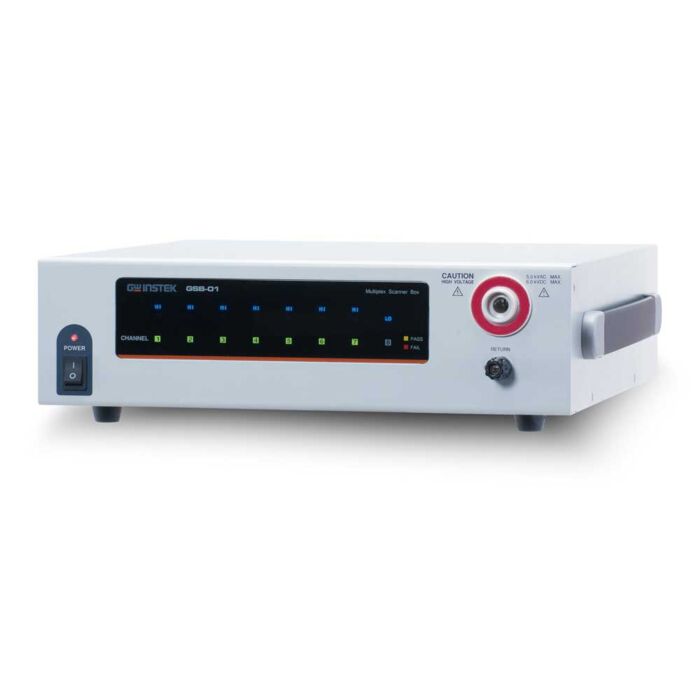

GW Instek GSB-01 Multiplex Scanner Box, 8 Channel HV for GPT-98XX and 99XX Series

The Instek GSB-01 Multiplex Scanner Box has the ability to conduct AC/DC withstanding and insulation resistance tests on test points as well as a function to distribute the test voltage or current provided by the GPT-9800/9900/9900A units. Up to 4 scanners can be connected to the testers for a maximum of 32-Channels.

• High voltage rating: 5kVac/6kVdc
• 8-Channel High-Voltage scan
• Multi-channel Outputs for Withstanding Voltage, Insulation Resistance, Ground Bond Tests
• Front and rear input connector is designed for use with models GPT-9800/9900/9900A series
• Up to 4 scanner boxes (32 CH) can be connected to one models GPT-9800/9900/9900A series
• High-intensity LED for Channel, Status and Judgment indications
• Interface: RS-232

Applications:

• Multi-point safety testing
• Volume testing on factory floors

Each Unit Includes

• 1 - 8-Channel High Voltage Scanner Box (GSB-01)
• 8 - Test Leads (GHT-116R)
• 2 - Test Leads (GTL-116R)
• 1 - Power Cord
• 1 - Communication Cable (GTL-235)
• 1 - H.V. Wiring Lead (GHT-108)
• 1 - G.B. Wiring Lead (GHT-109)
• 1 - HV Test Leads (GHT-116B)
• 1 - GB Sense/Source H Test Lead (GTL-116B)
• 1 - Quick Start Guide
• 1 - CD with Complete User Manual
