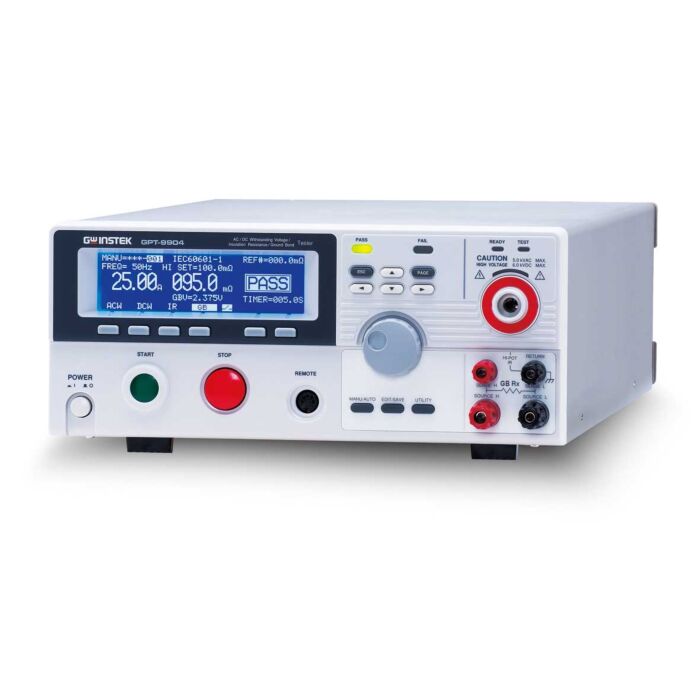

GW Instek GPT-9901A Performance Hi-Pot Tester, AC 500VA

The Instek GPT-9901A Electrical Safety Hi-Pot Tester supports higher power demands for tests of electronic products and components for the safety standards such as IEC, EN, UL, CSA, GB, JIS and more. The GPT9901A unit is equipped with a PWM amplifier which impedes influence from the input AC voltage fluctuation and ensures a stable voltage output.

• 500VA AC Test Capacity
• 240x64 Ice Blue Dot matrix LCD
• Sweep Function for DUT characteristic analysis
• Insulation resistance measurement up to 50GOhm
• Manual/Auto Mode
• Function Key for quick selection
• High intensity flash for caution & Status indication
• Safety INTERLOCK function
• Zero Crossing Turn-on Operation
• Controllable Ramp-up Time
• True RMS Current Measurement
• High resolution: 1uA for measuring current, 2V for setting voltage
• PWM amplifier to enhance the power efficiency and reliable testing
• Max. 100 memory block for test condition (step) setting. And each step can be named individually
• Remote terminal on the front panel for "start" and "stop" control

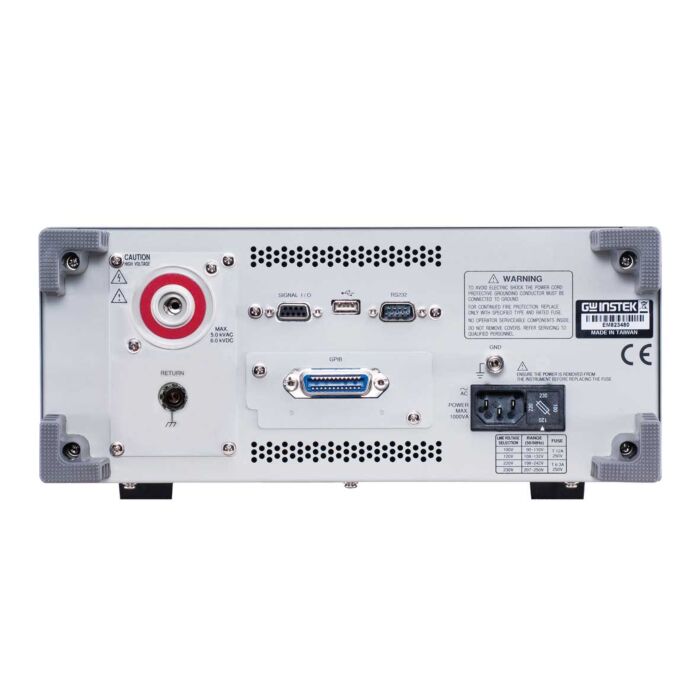

• Rear panel output available
• Interface: RS-232C, USB device, Signal I/O and GPIB (optional)

Each Unit Includes

• 1 - Electrical Safety Analyzer with Withstanding Voltage, AC, 500VA (GPT-9901A)
• 1 - Quick Start Guide
• 1 - Completed User Manual (CD)
• 1 - Power Cord
• 1 - Test Lead (GHT-114)
• 1 - Remote Terminal Male Plug
• 1 - Interlock Key
