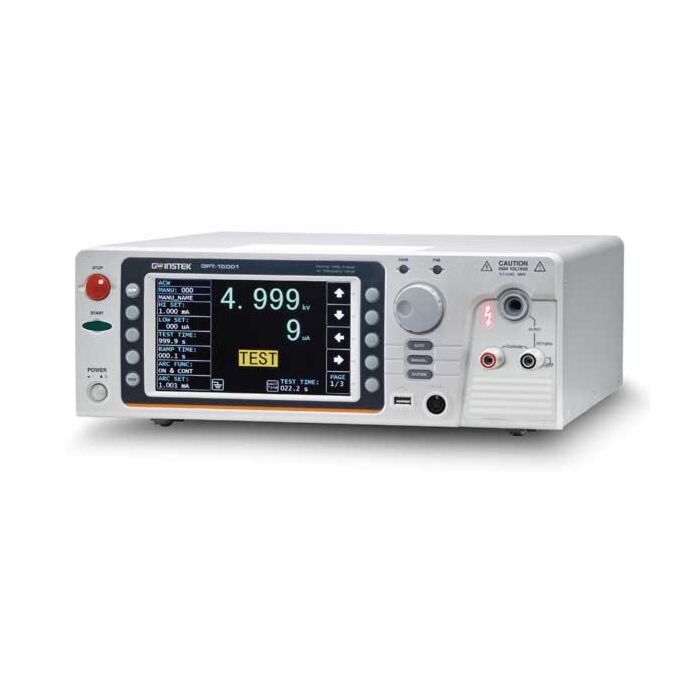

GW Instek GPT-15002 Safety Analyzer, AC/DC 500VA

The Instek GPT-15002 AC/DC Electrical Safety Analyzer complies with IEC 61010-2-034 and can store up to 100 manual tests and run up to 10 manual tests sequentially as an automatic test.

• 500VA AC/DC (short circuit current > 200 mA)
• Comply with IEC 61010-2-034
• 7" TFT LCD
• Manual/Auto Mode
• RMS Current Measurement
• Zero Crossing Turn-on Operation
• Controllable Ramp-up & Ramp-down Time
• Capacitive Load Testing Capability up to 47uF
• Statistics & Analysis Function
• Sweep Function for DUT Characteristic Analysis
• Convenience Listed AUTO mode easy to read result & judge
• Internal Storage & USB Storage available
• Barcode Function available
• Setting Data Export/Import
• Rear panel output available
• Interface: RS-232C, USB host/device, Signal I/O and optional GPIB or LAN
• Universal power input

Each Unit Includes

• 1 - AC/DC Electrical Safety Analyzer, 500VA (GPT-15002)
• 1 - Test Lead (GHT-115)
• 1 - Power Cord
• 1 - Remote Terminal Cable (GHT-119)
• 1 - Interlock Key
