A faster, simpler, and lightweight solution for testing grounded pathways and connections over long distances – even in hard-to-reach locations!
The AEMC CA 6011 KIT (2135.63) combines the CA 6011 (2135.62) Point-to-Point Continuity Tester which is a unique, wrist-worn continuity tester designed to verify pathways and ground connections over long distances without the need to juggle a traditional ground tester with various ground testing accessories.
A constant 200 mA test current, automatic polarity reversal, and lead compensation provide accurate and repeatable continuity measurements. The large backlit display, programmable PASS/FAIL thresholds, and audible/vibration alarms let users confirm continuity at a glance, or by touch, even in dark and noisy environments or with hard-to-reach components. Users can easily verify lightning conductors, EGCs, motor frames, signal grounds, and cabinets by connecting to a ground bus or lug, then making contact with the component under test at any point of the system.
With a comfortable wrist-strap form factor and long battery life (up to approximately 30,000 measurements), the CA 6011 is ideal for commissioning and troubleshooting ground systems in the field. Built for speed and repeatability, the CA 6011 takes the guesswork out of testing so that users can move through even large systems with ease and confidence.
The AEMC CA6011KIT (213563) includes the CA 6011 (2135.62) Point-to-Point Continuity Tester which is a unique, wrist-worn continuity tester designed to verify pathways and ground connections over long distances without the need to juggle a traditional ground tester. The CA 6011 KIT (2135.63) model additionally includes various accessories for aiding in ground testing applications.
- Comfortable: wrist-worn and lightweight
- Convenient: continuity probe assists with performing testing in hard-to-reach areas
- Efficient: performs significantly faster than a ground resistance type meter
- Accurate: automatic polarity reversal (applies current + to - then - to + for more accurate results)
- Lead compensation for accurate measurements
- Constant operation: continuously measures — no need to press a button to start or stop a test
- Commissioning or troubleshooting bonded non-current carrying conductive pathways to ground
- Checking connections over long distances
- Compatible with AEMC® - Instruments ground testing accessories (instrument will work with our reel kits)
Applications
- Lightning protection
- Traffic management
- Data centers communications
- Solar/renewable energy
- MSHA (mining and general contractors)
- Static grounds for hazardous materials (paint shops, chemical processing)
- Utility (construction for commissioning ground integrity for substations)

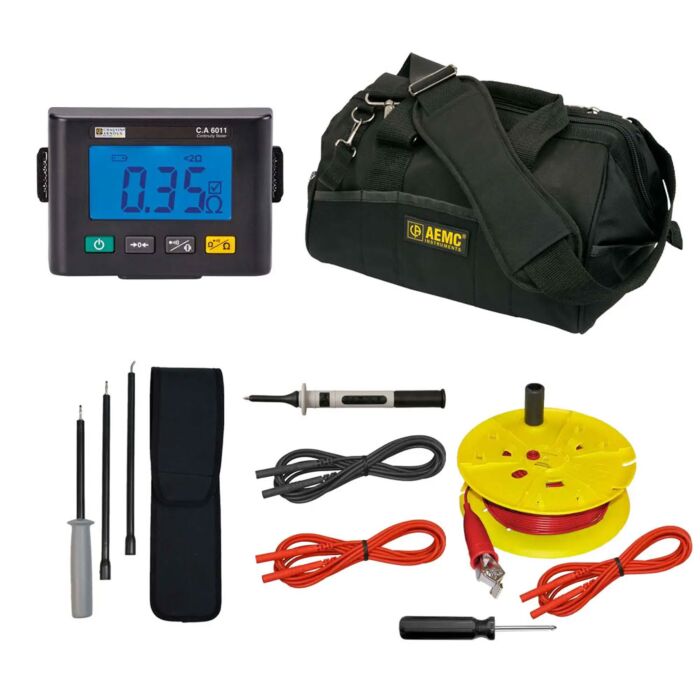

Each Unit Includes
- Elastic wrist strap
- 4 - AA Batteries
- Small Classic Tool Bag
- 1 - 5 ft Red Lead (straight/straight)
- 1 - 5 ft Black Lead (straight/straight)
- 1 - Black Test Probe
- 1 - 150 ft Red Lead on Spool
- 1 - Continuity Probe Set
- Safety Sheet
- User Manual
