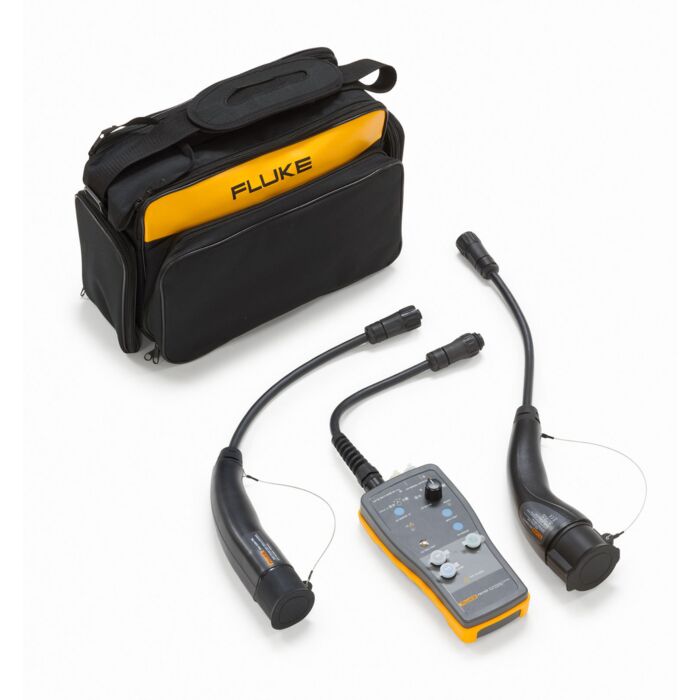

General specifications
|
| Input voltage |
UL1/N = 120 V, UL2/N = 120 V, UL1/L2 = 208 V, 60 Hz (three-phase system) or UL1/N = 120 V, UL2/N = 120 V, UL1/L2 = 240 V, 60 Hz (single-phase system), ±10% voltage fluctuations from nominal |
| EV connector |
SAE J1772 socket (type 1, 5P single-phase)
Connector for Teslaâ„¢ station |
| Internal power consumption |
2 W max. |
| Operating temperature |
-4 °F to 104 °F (-20 °C to 40 °C) |
| Storage temperature |
-4 °F to 122 °F (-20 °C to 50 °C) |
| Operating humidity range |
10 % to 85 % relative humidity non-condensing |
| Storage relative humidity |
0 % to 85 % non-condensing |
| Operating altitude |
6561 ft (2000 m) max. |
| Dimensions (H x W x D) |
Approx. 8.66 x 4.33 x 1.77 in (220 x 110 x 45 mm) without cable assembly |
| Weight |
Approx. 4.4 lb (2 kg) |
| Safety standards |
IEC 61010-1, Pollution Degree 2 |
| IEC 61010-2-030 |
| Measurement category |
CAT II 250 V |
| IP protection class |
IP54 |
|
Electromagnetic Compatibility (EMC)
|
| International |
IEC 61326-1: Basic Electromagnetic Environment |
| CISPR 11: Group 1, Class A |
| Group 1: Equipment has intentionally generated and/or uses conductively-coupled radio frequency energy that is necessary for the internal function of the equipment itself. |
| Class A: Equipment is suitable for use in all establishments other than domestic and those directly connected to a low-voltage power supply network that supplies buildings used for domestic purposes. There may be potential difficulties in ensuring electromagnetic compatibility in other environments due to conducted and radiated disturbances. |
| Caution: This equipment is not intended for use in residential environments and may not provide adequate protection to radio reception in such environments. |
| USA (FCC) |
47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103. |
|
Functions
|
| CP States |
A, B, C, D |
| CP Error "E" |
On/off |
| PE Error |
On/off |
| GFCI Test |
Yes, test resistor of 2 kΩ connected between L1 and PE, time limitation 40 ms |
| PE Pre-Test (typical) |
Visible indication >30 V on PE conductor |
| Outputs (for test purpose only) |
| Measuring terminals |
Max. 250 V 50/60 Hz, CAT II 250 V |
| L1, L2/N, PE |
| CP signal output terminals |
Approx. ±12 V (under normal conditions), in case of wrong wiring or error of the charging station these terminals can be hazardous ≥ max. 250 V against PE |
