Pomona PVLEAD3

Order # PVLEAD3 | Mfg # 5301195
Save 5%
$99.99
$94.99
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

Product Highlights

  • Designed for use with solar clamp meters that accept 4mm banana plugs
  • Ensures safe DC power measurements on Photovoltaic (PV) modules and systems
  • Creates connection between solar panel and inverter for troubleshooting and maintenance of PV systems
  • Complies to CAT III 1000V / CAT IV 600V, 20A ratings in accordance to IEC / EN 61010-031

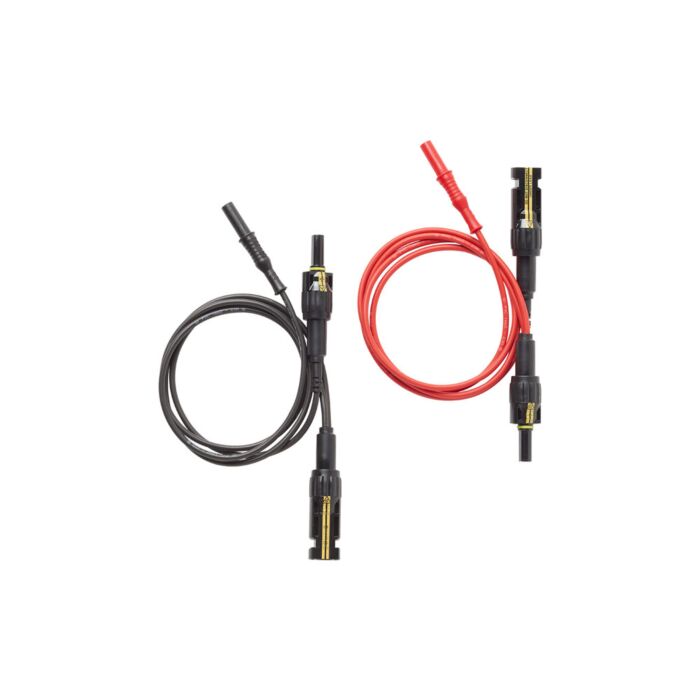

The Pomona MC4 Solar Clamp Lead Set creates a connection between a solar panel and inverter for troubleshooting and maintenance of PV systems with compliance to CAT III 1000V / CAT IV 600V, 20A ratings in accordance to IEC / EN 61010-031.

Key Uses of Product

  • Measure current and voltage on solar PV panels and systems
  • Connect to clamp meters for test measurements
  • Bypass connections between solar panels and inverters
  • Troubleshooting and maintenance of PV systems

Each Unit Includes

  • Set of black and red solar power clamp test leads

Technical Resources

Pomona PVLEAD3 Datasheet

Specifications

  PVLEAD1 PVLEAD3
MC4 to 4mm Test Lead Set MC4 Solar Clamp Meter Test Lead Set
Contact Brass, Nickel Plated Brass, Nickel Plated
Length 60" 36", 12"
Voltage CAT III 1000V CAT III 1000V
CAT IV 600V CAT IV 600V
Current 20 amp 20 amp
Standards IEC 61010-031 IEC 61010-031
