Order #: DPM1000
Mfg #: 1013-356
Product Highlights
- AC/DC voltage to 1000 V
- AC/DC current to 1000 A
- True RMS
- Resistance 100 kΩ
- Bluetooth link to the Megger Link app
- Phase rotation indication

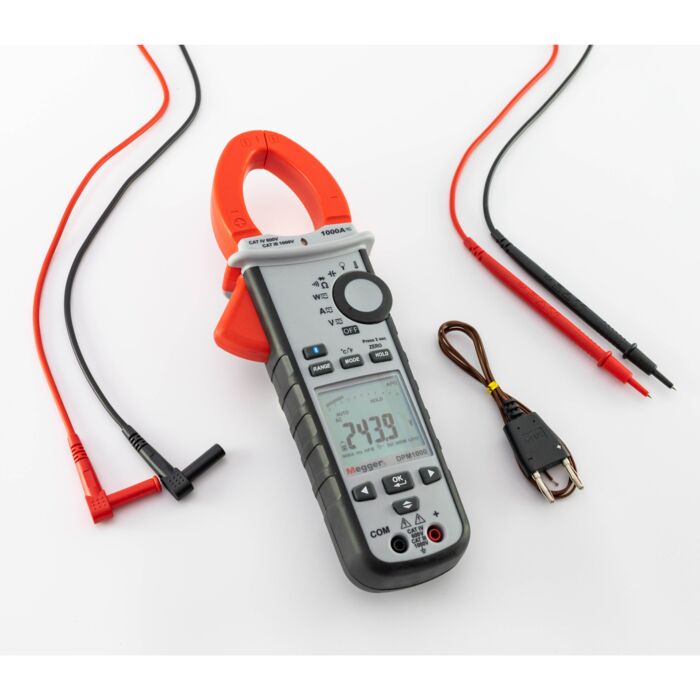

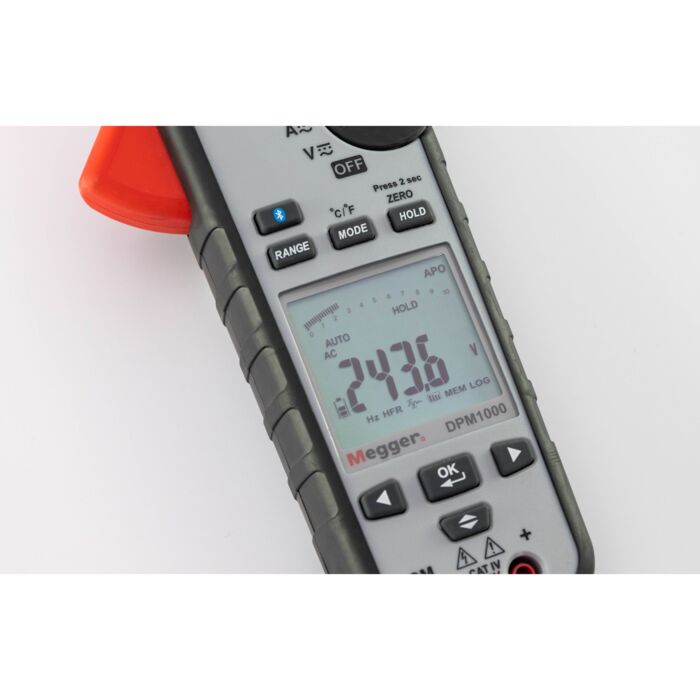

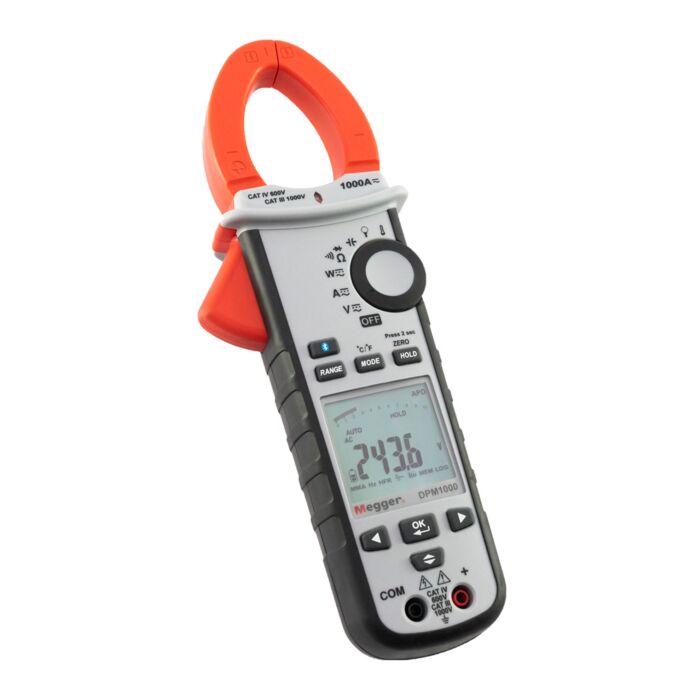

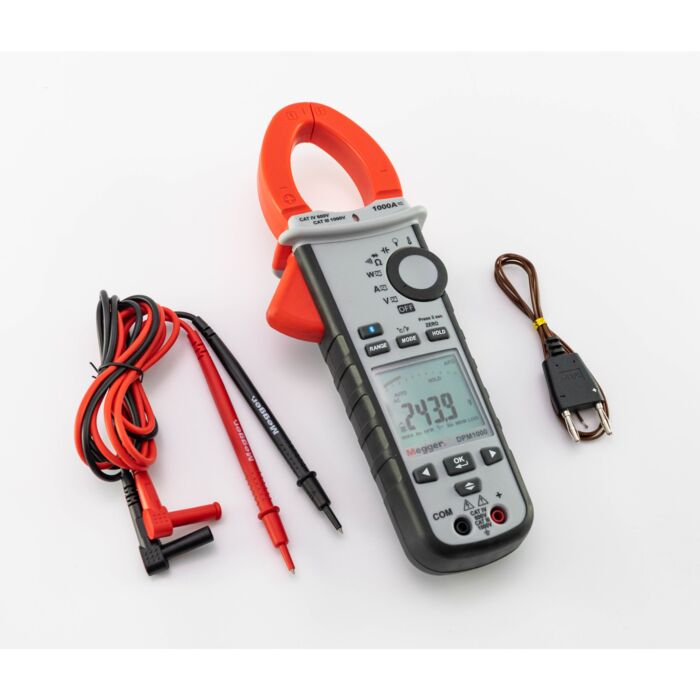

The new Megger DPM1000 power clamp meter combines the functionality of power meter, harmonics meter and data logger in one easy-to-use package. The design meets the requirements of BSEN 61010-1 CAT IV 600 V for supply side applications. A large, backlit LCD clearly displays all measurements that can be selected at the touch of a button or when rotating the selection dial. It also automatically switches off to save battery consumption.
The DPM1000 can measure DC, AC, pulsed and mixed currents up to 1000 A simply by clamping the jaws around the appropriate conductor, whilst voltages up to 1000 V AC or DC may be measured by the supplied test leads. Where power measurements are to be made, both techniques above are performed simultaneously.
- Megger 1013-364TP100 temperature probe
Order #: 1013-364
Mfg #: 1013-364
Availability: Ships in 3-4 weeks$50.00 - Megger 1013-358DCM 2 wire lead set (red and black)
Order #: 1013-358
Mfg #: 1013-358
Availability: Ships in 3-4 weeks$76.00
