Product Highlights

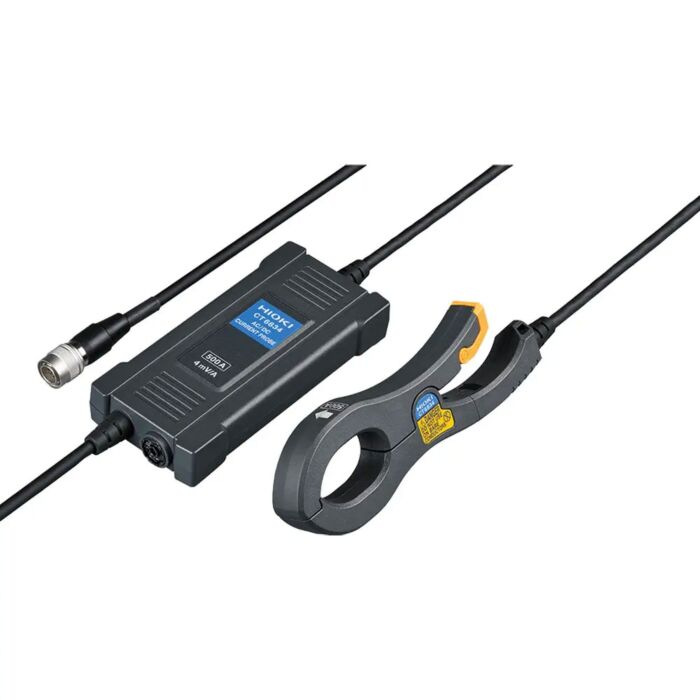

The Hioki AC/DC current probe features a 50% smaller size while delivering precise and reliable performance across a wide temperature range. Perfect for automotive testing, it simplifies installation in tight spaces, enhances measurement accuracy, and improves testing efficiency. The slim design ensures easy installation even in tight spaces.
The clamp meter makes complex tasks in the engine room become simple and efficient, dramatically reducing preparation time for fuel efficiency and performance testing. Not only does it reduce setup time, but it also minimizes the risk of sensor damage from forced clamping between narrow spaces. Fully compliant with the WLTP and SAE J1634 standards, this clamp provides precise AC/DC current measurements up to 500 A, with an impressive DC accuracy of 0.07%.
Features
- Rated Current: 500A AC/DC.
- Core Diameter: 5 mm or less
- Operating Temperature: -40°C to 85°C, 80% RH or less
- High-performing frequency (amplitude/phase), temperature (sensitivity/offset) characteristics
- Broad operating temperature range for high-accuracy low-level DC current measurements
- Compact size
- Easy to install in confined locations with complex wiring
