Storage Battery System SBS-H2

Hydrogen Detector

Order #: SBS-H2

Mfg #: SBS-H2

Questions about availability or need help? Contact Us:

(800) 633-0561
$995.00

Storage Battery System SBS-H2

Hydrogen Detector

Order #: SBS-H2

Mfg #: SBS-H2

$995.00
The SBS-H2 Hydrogen Detector is a complete hydrogen monitoring system with visual and audible alarms.The system comes complete with the main display, a highly accurate hydrogen gas sensor and a 25-ft. cable.
Availability: Ships in 2-3 Weeks
Available Promotions

Only need this item for a short time? Learn about rentals

Questions about this product? Speak to an expert

Product Highlights

  • Universal power input. Can be plugged into a std. 120vac receptacle or be hard wired to operate on 120/240vac or DC.
  • Mechanical relays are easily accessible
  • Max Switching voltage 28Vdc,277Vac
  • Rated Current 10A @ 277Vac, 15A @125Vac
  • Push button diagnostic test
  • Potentiometers for onsite calibration
  • The SBS-H2 Hydrogen Detector is a complete hydrogen monitoring system with visual and auditable alarms. The alarm system comes complete with the hydrogen sensor and all the necessary accessories to quickly and easily install the system.
  • Warning: When at least 1% hydrogen in air is present the yellow warning light will come on and the Warning relay contact will close allowing power to peripheral such as a vent fan or other device.
  • Alarm: When at least 2% hydrogen in air is present the Red warning light will come on and an audible alarm activates. In addition a second alarm relay contact will close which can be used to shut down the system, initiate a building alarm system, or other devices

Each Unit Includes

  • Main Unit
  • 25 foot long cable
  • Sensor

Special Member Pricing
Buy with Calibration
Rental Instruments
Access to 100,000+ products
1,000's of instruments in stock
Product selection expertise
Application assistance
Purchase with a PO

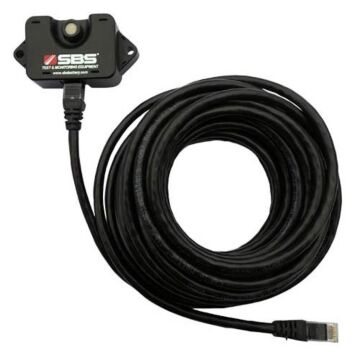

  1. Storage Battery System H2-SENSOR-50FT
    Storage Battery System H2-SENSOR-50FT
    Hydrogen Sensor w/50ft.Cable for SBS-H2

    Order #: H2-SENSOR-50FT

    Mfg #: H2-SENSOR-50FT

    Availability: Ships in 2-3 weeks
    $515.00
  2. Storage Battery System H2-SENSOR-100FT
    Storage Battery System H2-SENSOR-100FT
    Hydrogen Sensor with 100ft Cable for SBS-H2

    Order #: H2-SENSOR-100FT

    Mfg #: H2-SENSOR-100FT

    Availability: Ships in 2-3 weeks
    $525.00
