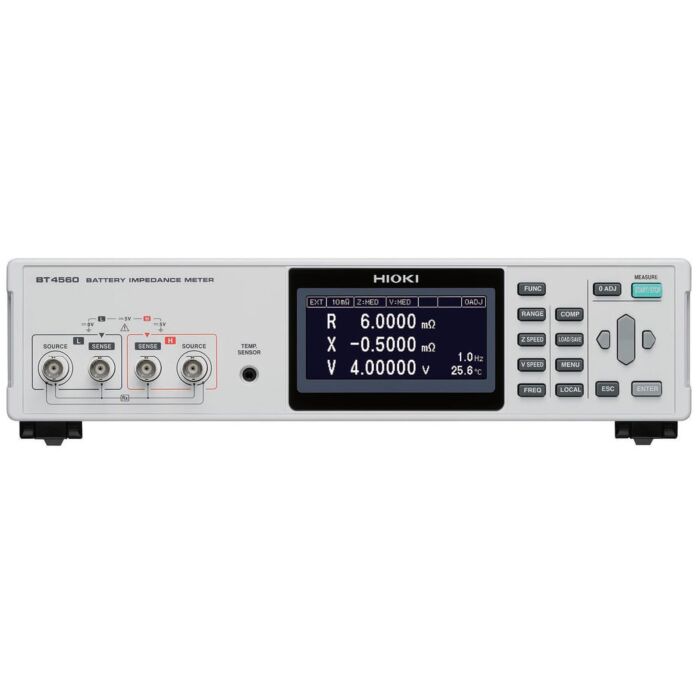

Hioki BT4560-50 Battery impedance Meter

Product Highlights

The Hioki BT4560-50 Battery Impedance Meter can make EIS measurements quickly and easily in applications ranging from R&D to manufacturing. It delivers high-precision measurement capability for quality control of high-capacity batteries, and it can be expanded into an evaluation system for efficiently measuring multiple batteries. In addition, a LAN interface simplifies the process of building a testing system, offering additional convenience.

Hioki benchtop battery testers support simultaneous high-speed measurement in the ever-expanding production lines of increasingly larger lithium-ion low resistance batteries. The BT4560 battery impedance tester measures the impedance of lithium-ion batteries using the low-frequency AC-IR measurement method without charging and discharging the battery, substantially reducing the time needed to inspect the internal resistance of battery cells.

Features

• EIS measurement frequency: 0.01 Hz to 1.05 kHz
• Simultaneous measurement of impedance, voltage and temperature
• Convenient evaluation application software for R&D use
• Reduce measurement error with multiplexer circuitry designed with impedance measurement in mind
• Channel switching time: 11 ms
• Ideal for shortening test-times and building reliable testing systems
• Data compatibility with third-party equivalent circuit analysis software
• For production lines: LAN interface and advanced multi-channel solutions
