Starrett 3754-12/300
Height Gage,12"/300mm

Order #: 3754-12/300

Mfg #: 72625

Questions about availability or need help? Contact Us:

(800) 633-0561
Special Price $753.60 Regular Price $785.00

Starrett 3754-12/300

Height Gage,12"/300mm

Order #: 3754-12/300

Mfg #: 72625

Special Price $753.60 Regular Price $785.00

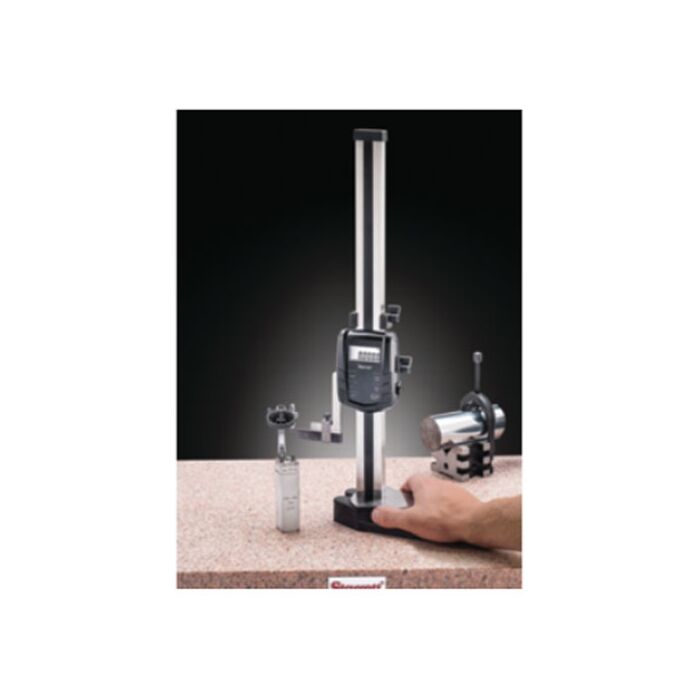

The Starrett 3754 Electronic Height Gage is a full featured, versatile and economic solution for most height measurement applications.
Availability: Ships in 3-4 weeks

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

Product Highlights

  • Clear bar graduations in .100" and 5mm increments 
  • Large (9.65mm/3/8"), easy-to-read LCD display reads to 0.01mm or .0005" 
  • Instant unit conversion 
  • Carrier and scriber designed to read from zero 
  • Hold control feature to retains a reading at any position 
  • Plus or minus indication allows reading in proper direction 
  • Ability to set zero at any position 
  • Manual on/off plus a built-in automatic off after 30 minutes of non-use to conserve battery life. 
  • Large positive action keypad 
  • Ability to retain and return to the true zero reading of the height gage 
  • PRESET button to install any reading at any position 
  • Ability to install minimum and maximum limits 
  • RS232 data output port 
  • Works well with Starrett DatasureWireless Data Collection Systems 
  • 1-1/2+ years battery life. Two batteries furnished (CR2032). 
  • The base is well-balanced, hardened, ground and lapped.
  • Range (in): 0 - 12" 
  • Range (mm): 0 - 300mm 
  • Resolution (in): .0005" 
  • Resolution (mm): 0.01mm 
  • Accuracy (in): (+/-)0.0015" for 0-18"; (+/-)0.002" for 18-24" 
  • Accuracy (mm): (+/-)0.04mm for 0-450mm; (+/-)0.05mm for 450-600mm
